Conspit APEX Bundle: ARES APEX 8Nm Base, 310 APEX Wheel and CPP APEX 2 Pedals
$300 off 30%$699MSRP $999
Tested and supported by our team in the US.
- Ships
- From Florida In-stock orders placed before 4pm ET ship the next business day. No same-day shipping.
- Shipping
- Free at $150 and up Under $150 pays $12. US shipping only.
- Returns
- 30 days unopened, 14 opened. Restocking fee applies. Read the policy
- Warranty
- Full manufacturer warranty. We handle the claim for you.
About the Conspit APEX Bundle: ARES APEX 8Nm Base, 310 APEX Wheel and CPP APEX 2 Pedals
A complete Conspit direct drive setup in one box
The APEX Bundle pairs the ARES APEX 8Nm direct drive wheelbase with the 310 APEX wheel, a CDR quick release and the CPP APEX 2 hydraulic pedal set. Every piece comes from the same Conspit ecosystem and runs in Conspit Link 2.0, so the base, wheel and pedals are set up together instead of matched up from different brands. It suits drivers stepping up from gear-driven or belt wheels, and anyone who wants a clean, capable first direct drive rig.

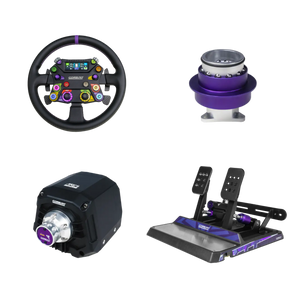

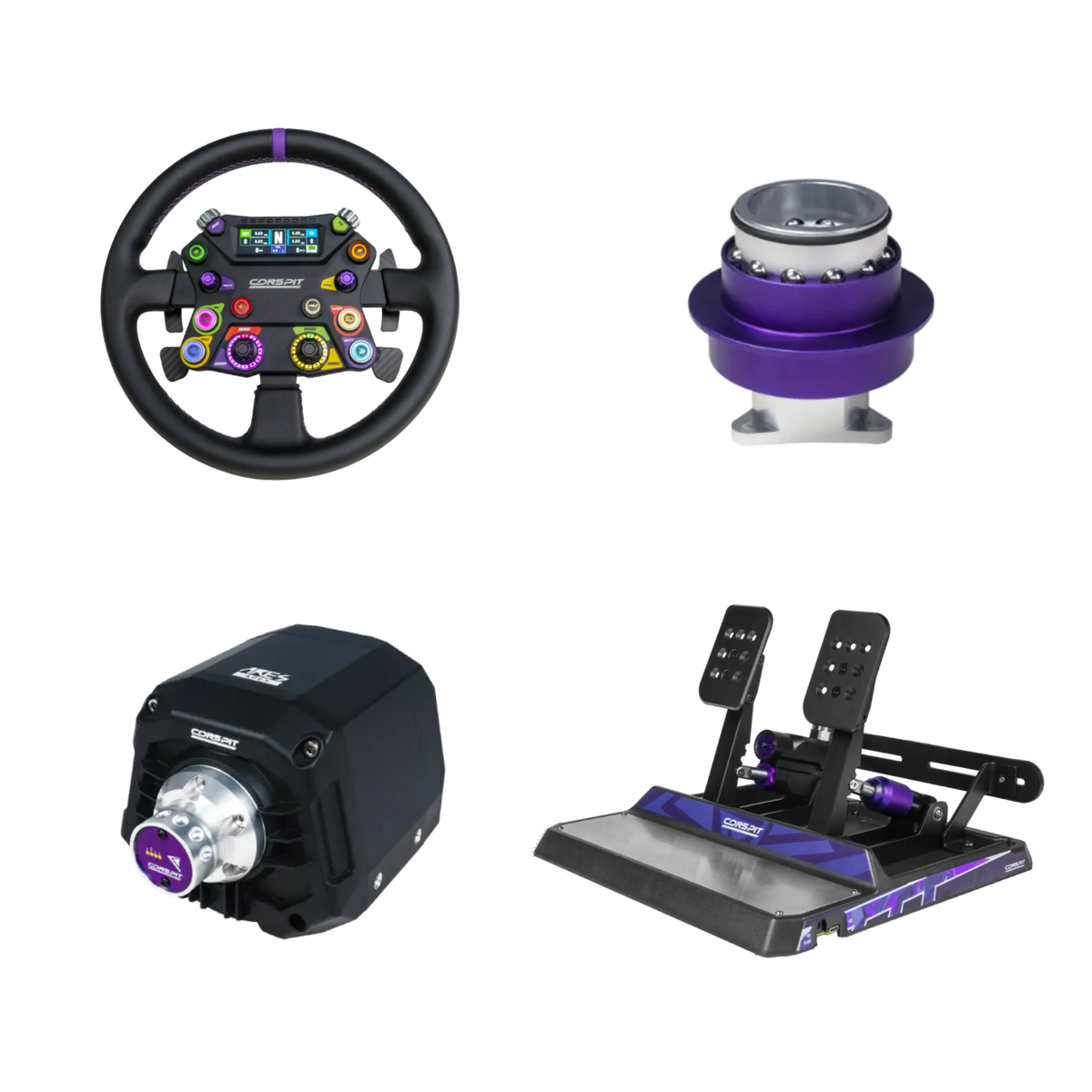

What's included
- Conspit ARES APEX 8Nm direct drive wheelbase
- Conspit 310 APEX wheel with synthetic leather rim
- Conspit CDR quick release
- Conspit CPP APEX 2 pedal set (hydraulic brake and throttle) with wall-mount bracket and non-slip silicone pads
ARES APEX wheelbase
A skew-pole direct drive motor with ultra-low cogging, 8Nm of holding torque, a 4 Nm/ms maximum torque change rate and a 21-bit magnetic encoder. The CDR quick release is built into the base, and the single-piece aluminum housing mounts from the bottom (M6 x 4) or sides (M8 x 4).

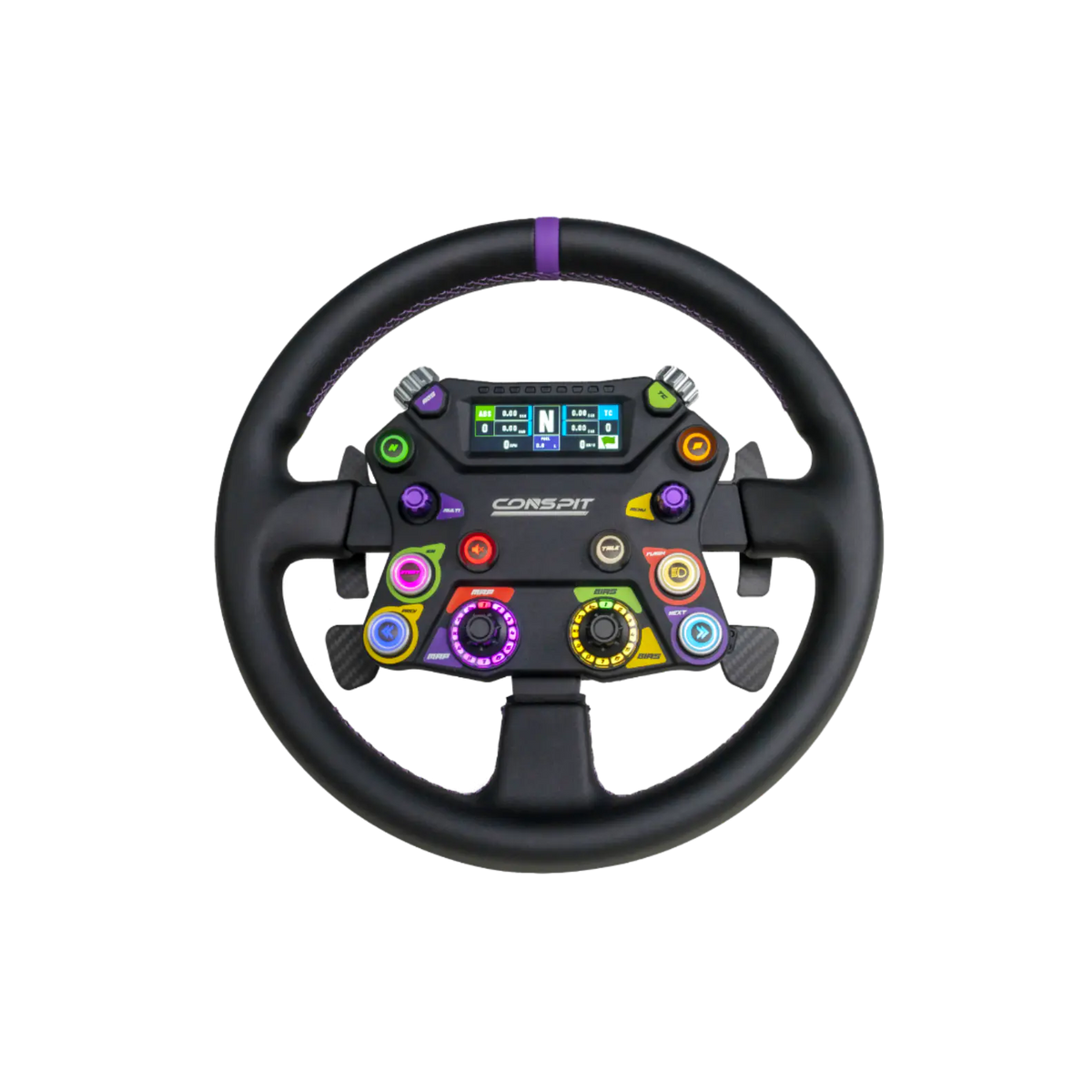

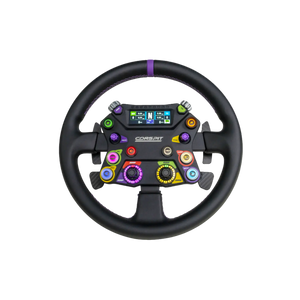

310 APEX wheel
A die-cast aluminum open-wheel with a built-in 2.99-inch LCD, up to 104 customizable inputs, eight RGB buttons, magnetic Hall-effect shift paddles with two resistance settings and dual Hall-effect clutch paddles. RGB lighting works with SimHub.

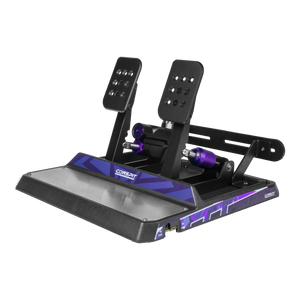

CPP APEX 2 pedals

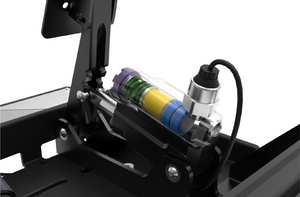

A hydraulic brake with a 10 MPa pressure sensor (up to 100 bar) and a two-stage spring and elastomer stack for precise threshold and trail braking. The enclosed throttle uses a Hall sensor. Both pedals sit on a 5mm laser-cut steel baseplate with adjustable pedal spacing, and an optional clutch pedal can be added later. The pedals connect by USB or through an ARES series base.
A desk mount, cockpit or profile rig is needed to mount the base and pedals and is sold separately.
Highlights
-
Complete Direct Drive Kit
Base, wheel, quick release and pedals from one ecosystem, all tuned in Conspit Link 2.0. Just add a mount.
-
8Nm ARES APEX Base
A skew-pole direct drive motor with ultra-low cogging and a 21-bit encoder delivers smooth, detailed force feedback.
-
Hydraulic Brake Pedals
The CPP APEX 2 brake pairs a 10 MPa hydraulic sensor with a two-stage spring and elastomer stack for consistent trail braking.
-
310 APEX with LCD Dash
A built-in 2.99-inch display, up to 104 customizable inputs and magnetic Hall-effect shift paddles.
One kit, one ecosystem.
The ARES APEX 8 Nm base, 310 APEX wheel, CDR quick release and CPP APEX 2 pedals, set up together in Conspit Link 2.0.

In this bundle
-
-
Wheel× 1
Conspit 310 APEX w/Quick-Con
- Display 2.99" 800x268 color LCD, 7 customizable dash pages
- Total Inputs 104 fully customizable inputs
- RGB Buttons 8, 500g actuation force
Ships with the CDR quick release, not Quick-Con
-
Base
8 Nm of direct drive, in a compact housing.
The ARES APEX is a skew-pole direct drive base with 8 Nm holding torque. It measures 134 x 150 x 196 mm and weighs 5.9 kg.

The numbers
- 8Nm holding torque
- 4Nm/ms max torque change rate
- 21bit magnetic encoder
- 5.9kg net weight

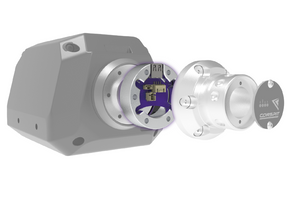

CDR quick release.
The ARES APEX takes Conspit's CDR quick release. It locks automatically, so wheel swaps need no tools, and spring contacts carry the signal. The wheel-side part is optional.
- Quick releaseConspit CDR, wheel-side part optional
- MountingM6 x 4 bottom, M8 x 4 sides

Built to run long stints.
A single-piece aluminum motor housing with real-time temperature monitoring, so force stays consistent over a long session.
- Size134 x 150 x 196 mm
- Weight5.9 kg
- ThermalReal-time temperature monitoring
More of the build
-
Skew-pole motor
A motor designed for sim racing, with ultra-low cogging for a smooth, quiet steering feel.
-

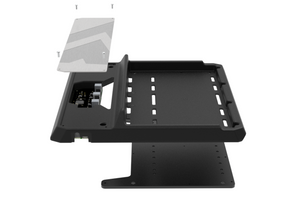

Mount it two ways
M6 x 4 on the bottom, M8 x 4 on the sides. Desk mount and profile rig brackets are available.
- USB
One USB 3.0 cable
Connects directly to a Windows PC and is set up in Conspit Link 2.0.
Specs
Base
- Holding Torque
- 8 Nm
- Max Torque Change Rate
- 4 Nm/ms
- Motor
- Skew-pole direct drive
- Encoder
- 21-bit high-resolution magnetic
- Processors
- Asymmetric dual, 170 MHz and 168 MHz
- Quick Release
- CONSPIT CDR quick release system, wheel-side optional
- Dimensions
- 134 x 150 x 196 mm
- Net Weight
- 5.9 kg
- Mounting
- M6 x 4 (bottom), M8 x 4 (sides)
- Thermal
- Real-time temperature monitoring
- E-Stop
- CES E-Stop (optional)
- Platform
- PC (Windows)
- Connection
- USB direct (USB 3.0 cable)
- Software
- CONSPIT LINK 2.0
Wheel
- Display
- 2.99" 800x268 color LCD, 7 customizable dash pages
- Total Inputs
- 104 fully customizable inputs
- RGB Buttons
- 8, 500g actuation force
- Encoder Dials
- 2 programmable, 24 combinations each
- Funky Switches
- 2, up to 7 assignable commands each
- Shift Paddles
- Magnetic Hall-effect, 2 resistance levels (660gf / 900gf)
- Clutch Paddles
- 2 modular Hall-effect paddles
- RGB Lighting
- 41 customizable LEDs (buttons, rev lights, knob lights)
- Construction
- Die-cast aluminum alloy front and rear housings
- Rim
- Synthetic leather (microfiber) with purple stitching
- Quick Release
- CDR Quick-Release System (optional) + Quick-Con 70mm PCD adapter
- Dimensions
- 310 x 310 x 89 mm
- Net Weight
- 1520 g (incl. rim, excl. QR/adapter)
- Software
- SimHub (RGB) + Conspit Link 2.0
Pedals
- Configuration
- 2 pedals, throttle and brake
- Max Brake Factor
- 100 bar
- Brake Type
- Hydraulic
- Dimensions
- 328 x 333 x 227 mm
- Main Material
- Aluminum alloy, carbon steel
- Launch Control
- Yes
- Optional
- CPP APEX clutch pedal, M-DVF 3-motor vibration kit
- Platform
- PC (Windows)
- Connection
- USB direct, CONSPIT CAN
- Software
- CONSPIT LINK 2.0, SimHub with the vibration module
Bundle
- Wheelbase
- Conspit ARES APEX, 8 Nm holding torque
- Torque Change Rate
- Up to 4 Nm/ms
- Encoder
- 21-bit high-resolution magnetic
- Motor
- Skew-pole direct drive, ultra-low cogging
- Base Mounting
- M6 x 4 (bottom), M8 x 4 (sides)
- Wheel
- Conspit 310 APEX, 310 mm, synthetic leather rim
- Wheel Display
- 2.99 in 800x268 color LCD
- Wheel Inputs
- Up to 104 customizable inputs
- Paddles
- Magnetic Hall-effect shifters (660 / 900 gf) plus dual Hall-effect clutch paddles
- Quick Release
- Conspit CDR
- Brake
- Hydraulic, 10 MPa sensor, up to 100 bar, two-stage spring and elastomer feel
- Throttle
- Enclosed design, Hall sensor
- Pedal Baseplate
- 5 mm laser-cut steel, adjustable pedal spacing
- Pedal Connection
- USB direct or through an ARES series base
- Clutch
- Optional CPP APEX clutch pedal (sold separately)
- Platform
- Windows PC
- Software
- Conspit Link 2.0, SimHub (RGB)
