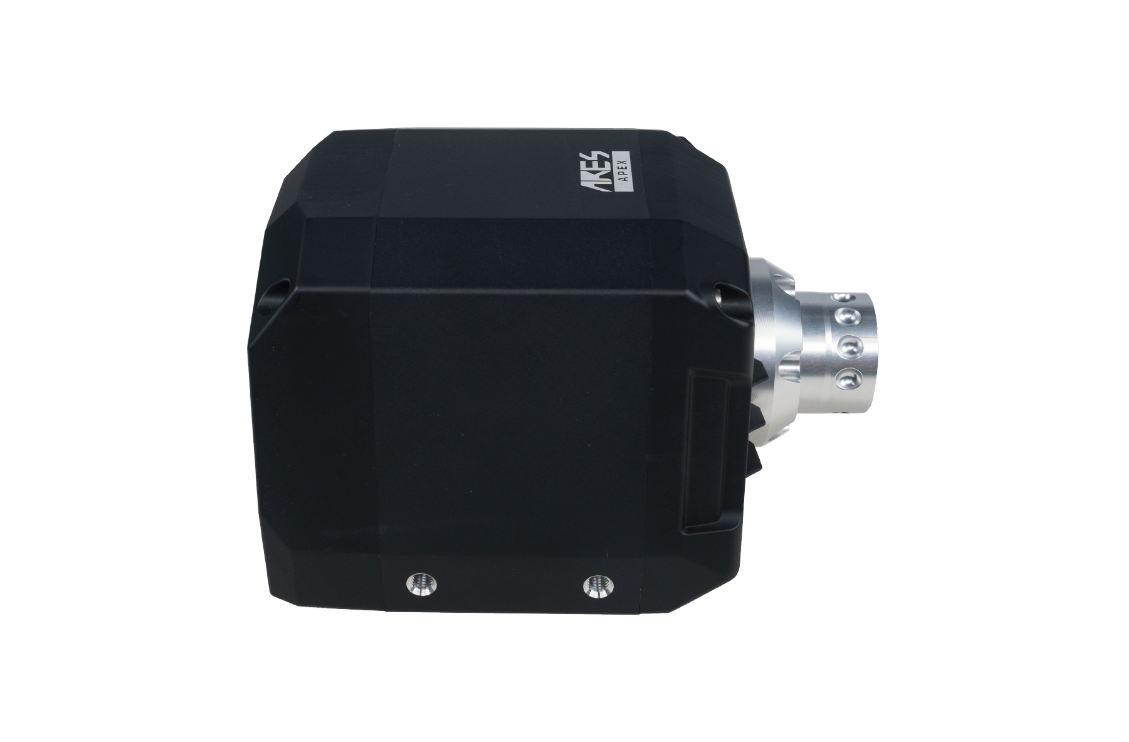

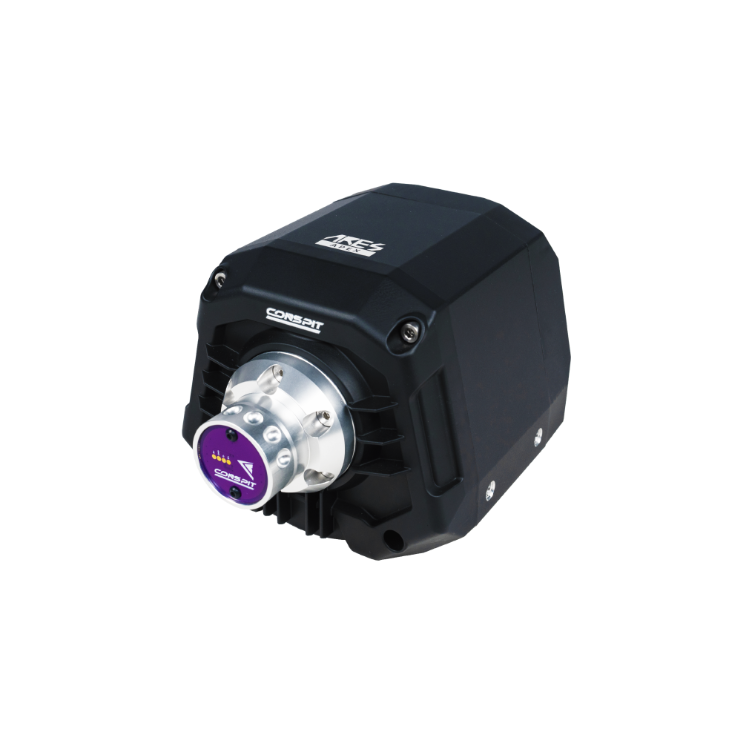

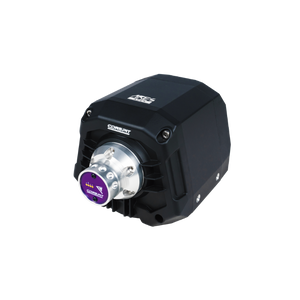

Conspit ARES APEX

ARES APEX: Realism, Beyond Force

The newest member of the CONSPIT ARES Series, the ARES APEX condenses the series' core technologies into a more compact, more accessible direct drive wheelbase. Rather than simply lowering the bar, APEX brings professional-grade direct drive within reach: a custom skew-pole motor purpose-built for sim racing, and a force feedback system fine-tuned with input from professional drivers and vehicle dynamics engineers.

Precision Performance

• 8Nm holding torque with a maximum torque change rate of 4 Nm/ms for fast, faithful response
• 21-bit high-resolution magnetic encoder for precise steering input detection
• Asymmetric dual processors (170MHz + 168MHz) for high-speed, stable performance
• Skew-pole motor design with ultra-low cogging torque for a smooth, quiet, natural steering feel
• Intelligent thermal management with real-time temperature monitoring for consistent performance in long stints

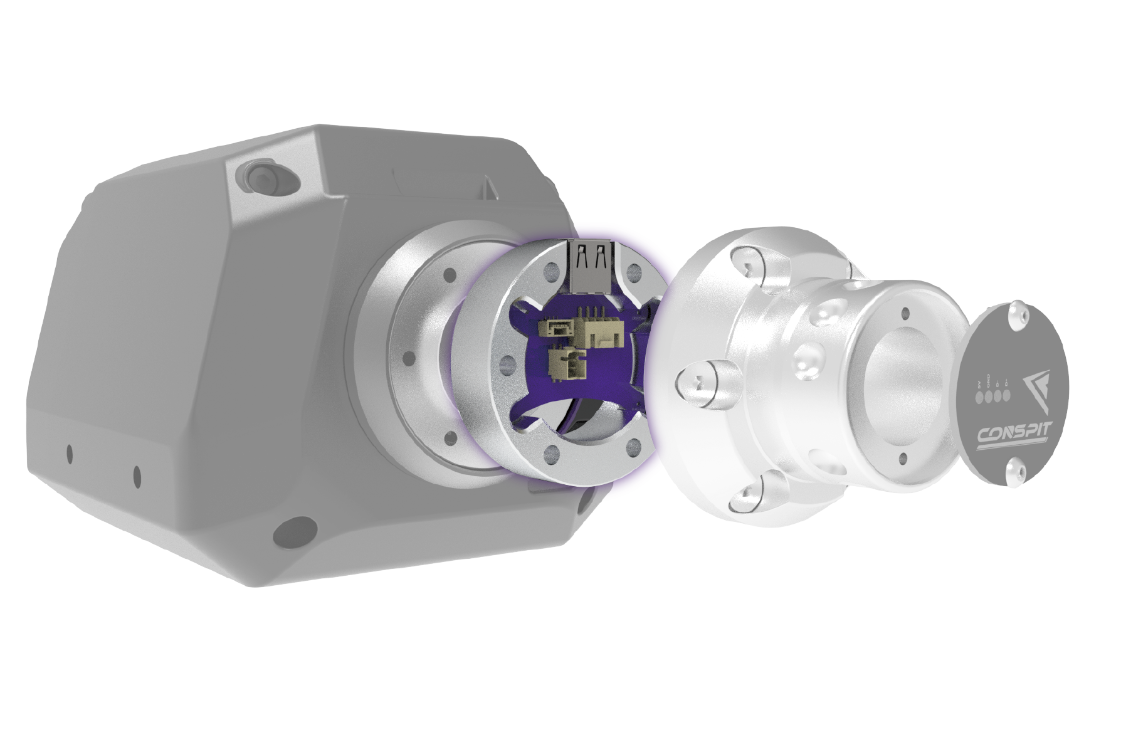

CDR Quick Release System

• Auto-locking mechanism for quick, tool-free wheel swaps
• Stable signal transfer via spring contacts, reliable even under EMI and superior to wireless
• High-durability industrial-grade slip ring; with the optional USB-A Adapter Spacer, any USB wheel plugs directly into the front of the base for lossless USB passthrough with no cable drag or tangling

Built to Last, Built to Fit

• Single-piece aerospace-grade aluminum motor housing with passive-cooling-optimized design
• Compact 134 x 150 x 196 mm body, 5.9 kg
• Bottom (M6 x 4) and side (M8 x 4) mounting; desk mount and profile rig brackets available
• Multiple layers of electrical and mechanical safeguards; optional CES E-Stop
• Conspit Link 2.0 software with official presets developed with pro drivers

Specifications
