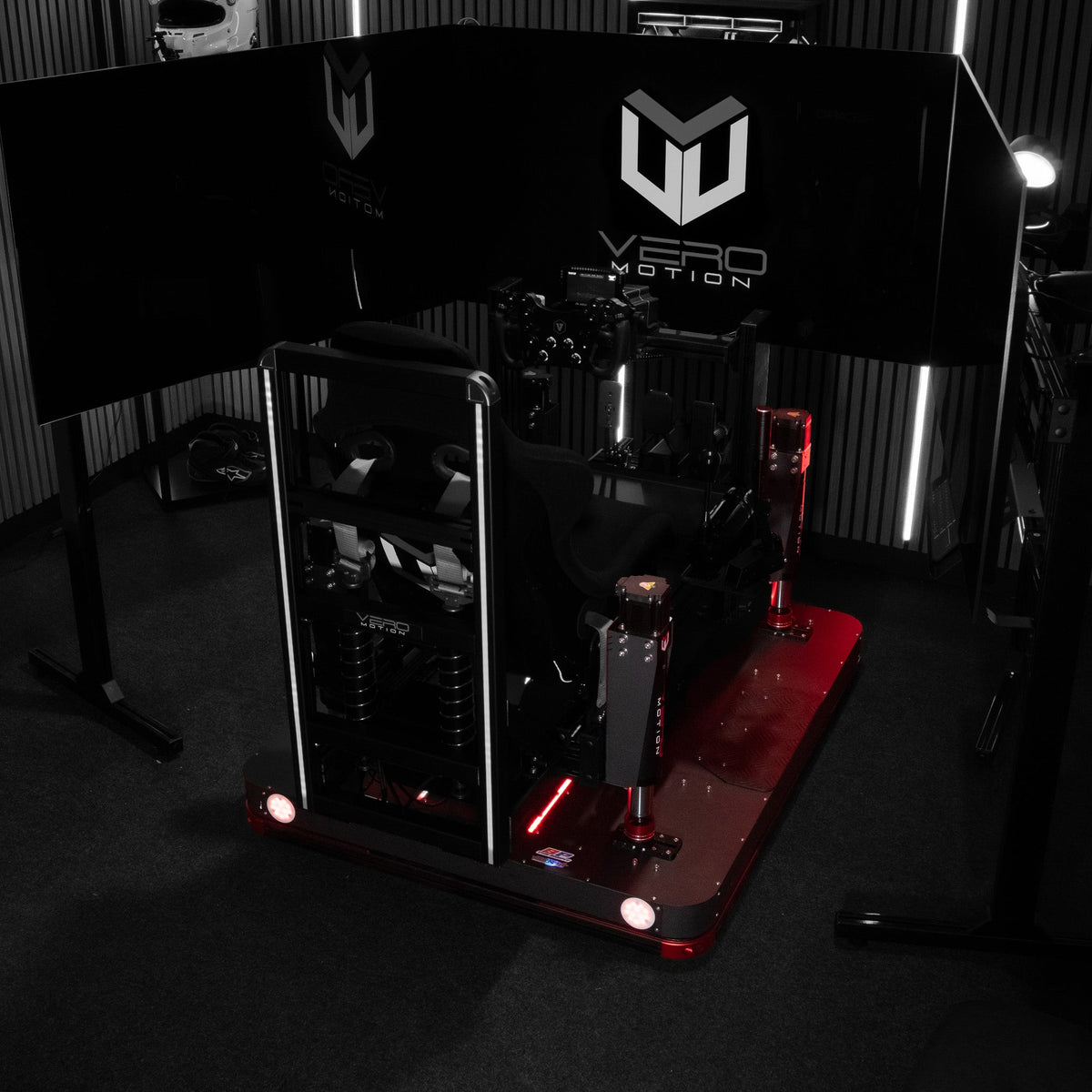

About the Vero Motion Legend GTR 6DOF Motion System

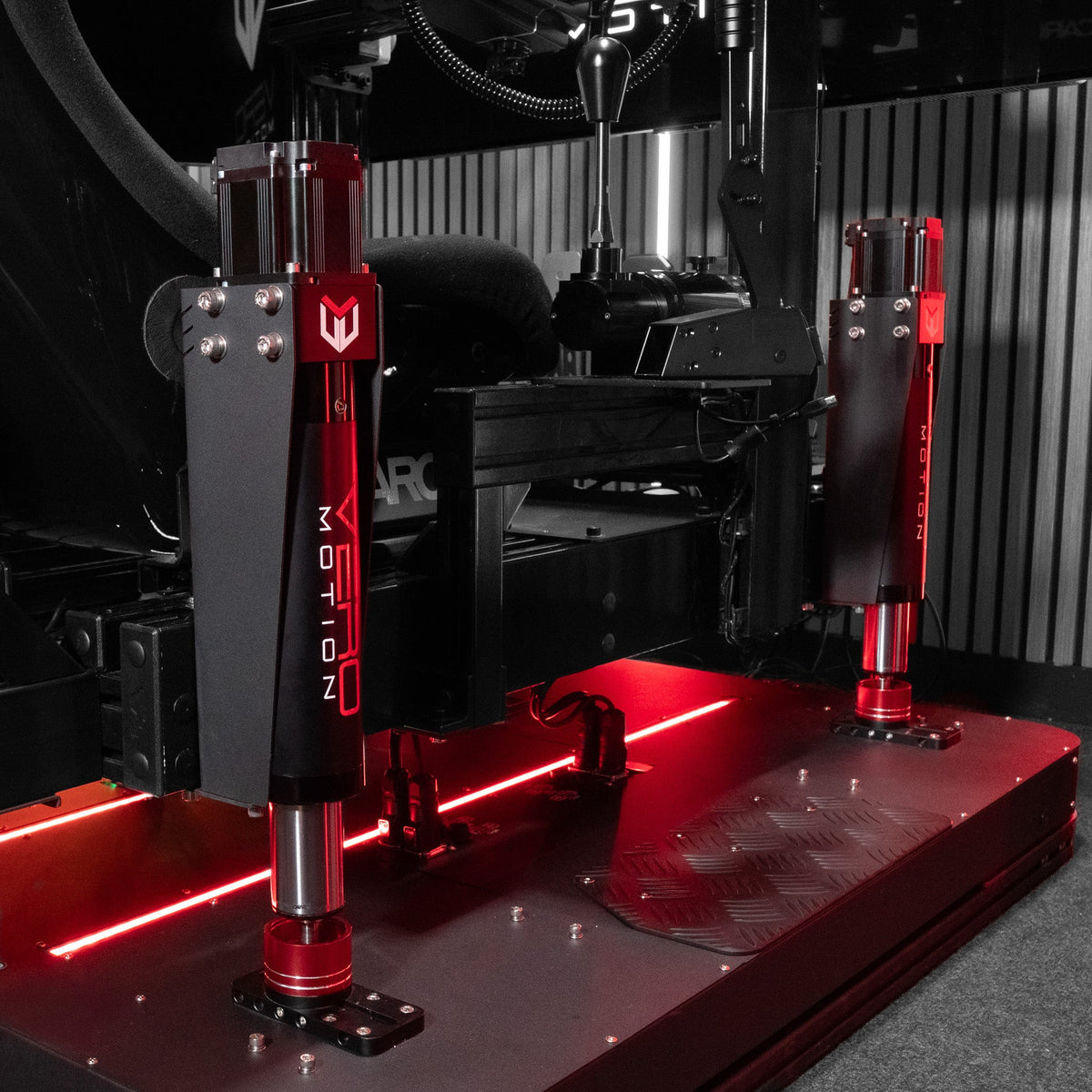

The Vero Motion Legend GTR is the complete system: a Champion GTR for pitch, roll and heave, sitting on the Legend base for surge, sway and traction loss. Every axis of motion a race car produces reaches you through the seat, which is why Vero builds it for drivers who train on the sim as seriously as they drive the real thing.
The difference you notice first is the rear of the car. Front and rear traction-loss actuators move the rig sideways and let it rotate, so oversteer arrives as a feeling in your hips before it shows on screen, and you catch it the way you would in a car. The surge actuator pushes you back on throttle and forward into the belts under braking, and together with pitch it makes trail-braking something you can do by feel.
The upper Champion GTR actuators have a 150 mm stroke and 200 kg of force each; the surge and traction-loss actuators have 180 mm of stroke and 80 kg each, all at 250 mm/s, with a rated load of 800 kg. The Legend base ships assembled, the whole system runs through SimHub on PC, and it carries a 3-year Vero Motion warranty.
Highlights
-
Every axis a car produces
Pitch, roll and heave from the Champion, plus surge, sway and traction loss from the Legend base — six real degrees of freedom.
-
Catch the slide
Dedicated front and rear traction-loss actuators let you feel oversteer and understeer as they happen, so you correct on instinct.
-
Trail-brake by feel
Surge and pitch work together through the braking zone, so you feel the load come off the nose as you ease off the pedal.
-
One order, one warranty
The Champion and Legend base ship together, run on one SimHub profile and carry a single 3-year Vero Motion warranty.
Specs
- Type
- Complete 6DOF motion system
- Degrees of freedom
- 6 (pitch, roll, heave, surge, sway, traction loss)
- Includes
- Champion GTR 3DOF system + Legend base

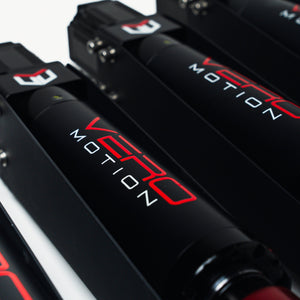

- Upper 3DOF actuators
- 4 × Champion GTR, 200 kg (441 lb), 150 mm (6 in) stroke
- Heave
- 150 mm
- Surge
- 180 mm (7.1 in), 1 × 80 kg actuator
- Sway / traction loss
- 180 mm (7.1 in), 2 × 80 kg actuators
- Actuator speed
- 250 mm/s
- Weight capacity
- 800 kg (1,764 lb)

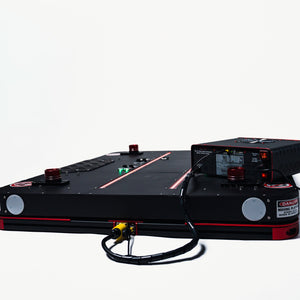

- Base
- Aluminum extrusion motion base, shipped assembled
- Controllers
- 1 exterior + 2 internal, with E-stop button
- Lighting
- 2 LED strips, 2 rear LED lights
- Software
- SimHub (PC)
