Vero Motion Champion GT 3DOF Motion System

$6,500

In stock. Ships direct from Vero Motion.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Tested and supported by our team in the US.

Not sure it fits your rig? Text or call (904) 606-5888.

Ships
Direct from Vero Motion Ships from the manufacturer. No same-day shipping. Text or call us for the current lead time.
Shipping
Free at $150 and up Under $150 pays $12. US shipping only.
Returns
30 days unopened, 14 opened. Restocking fee applies. Read the policy
Warranty
Full manufacturer warranty. We handle the claim for you.

About the Vero Motion Champion GT 3DOF Motion System

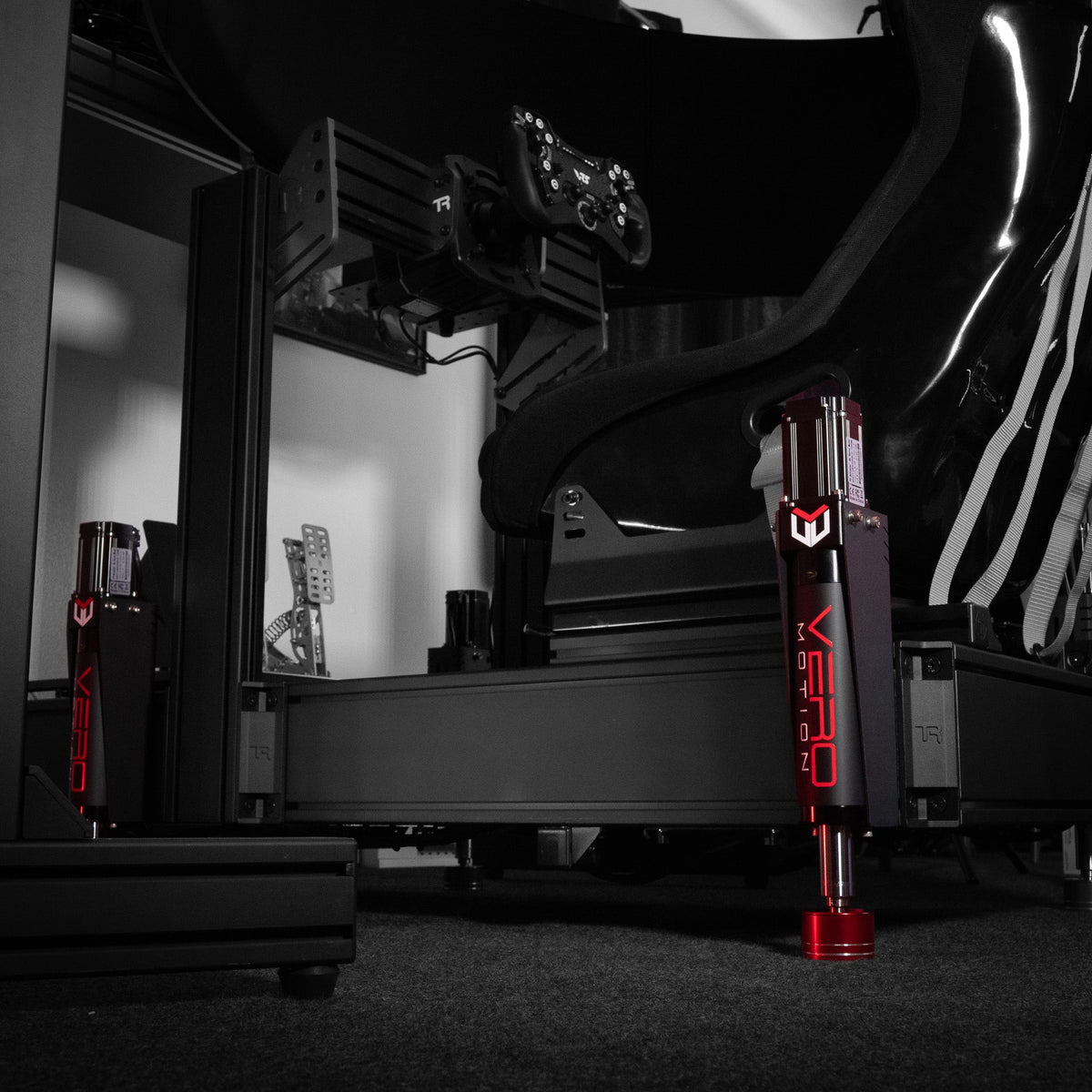

The Vero Motion Champion GT is where serious motion starts. Four Champion GT actuators sit under the corners of your aluminum extrusion cockpit and move the whole rig in pitch, roll and heave, so the weight transfer you have been inferring from sound and the screen arrives through the seat instead: the nose dipping into a braking zone, the load building through a long corner, the kick of a kerb.

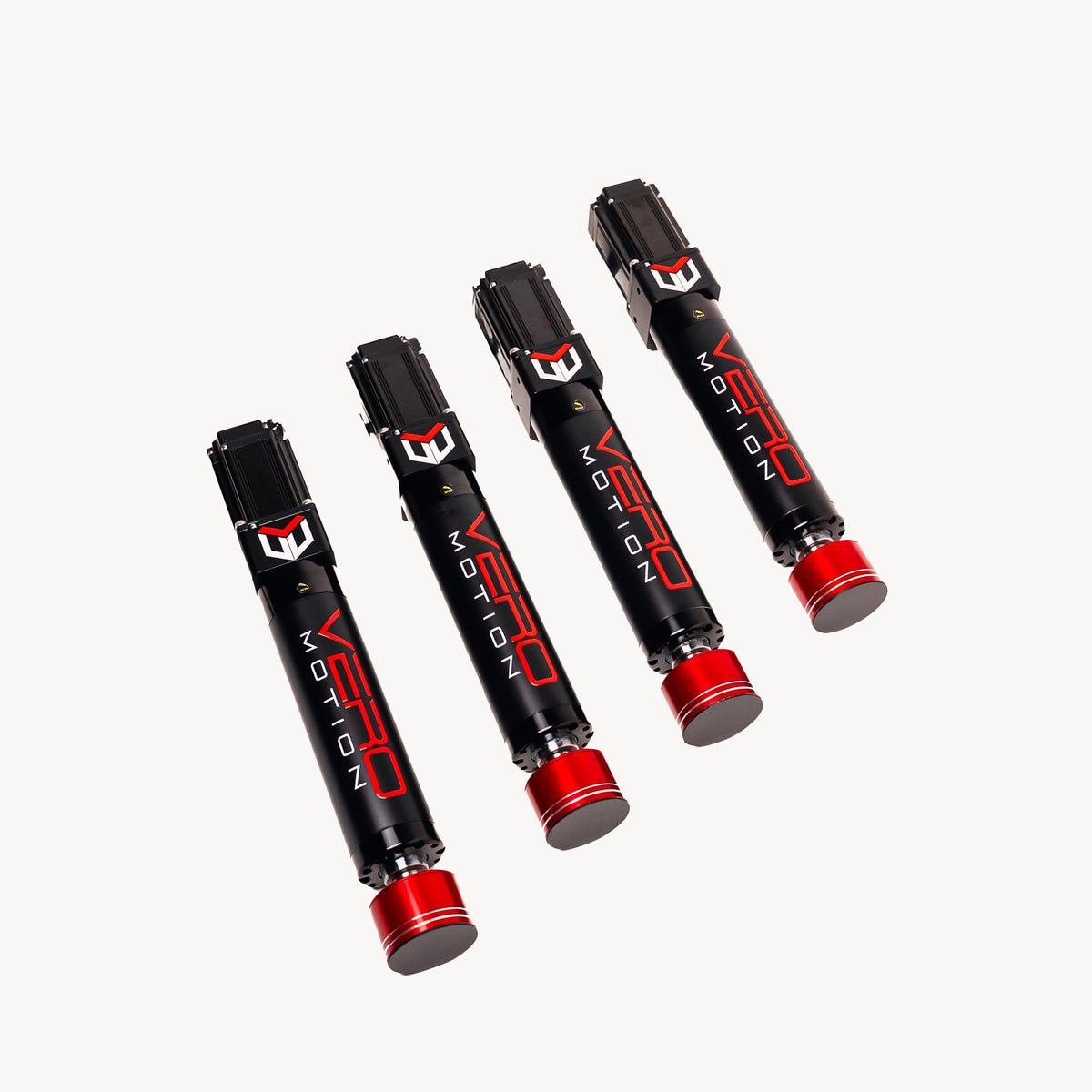

Each actuator runs at 250 mm/s with a 100 mm stroke and 80 kg of force, and the system is rated to carry 320 kg. That is plenty for a typical single-seat extrusion rig with a direct-drive base, pedals and seat on board.

The Champion runs through SimHub on PC and is the base of Vero Motion's range: add the Legend base later and the same actuators become the upper half of a full 6DOF system with surge, sway and traction loss. It carries a 3-year Vero Motion warranty, and when you are ready to size it for your rig, we are happy to talk it through.

Highlights

  1. Feel the weight transfer

    Pitch, roll and heave put braking, cornering load and weight transfer through the seat, so you read the car instead of the screen.

  2. Detail, not just the big hits

    250 mm/s actuators carry kerbs, bumps and road texture as well as the long g-cues of braking and cornering.

  3. Goes under the rig you have

    One actuator at each corner of your aluminum extrusion cockpit, with the brackets and floor cups included.

  4. Built to grow into 6DOF

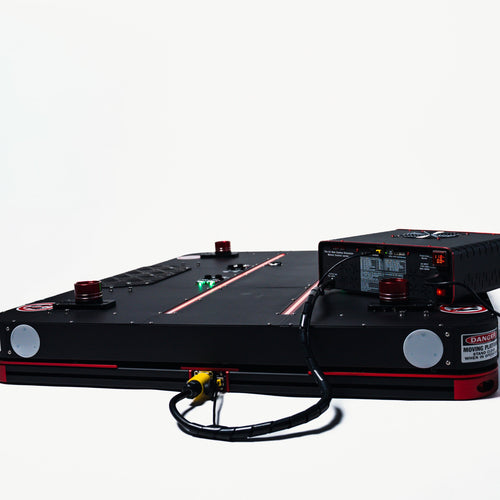

    Add the Legend base later for surge, sway and traction loss, and your Champion becomes a full Legend system.

Specs

Type
3DOF actuator motion system
Degrees of freedom
3 (pitch, roll, heave)
Actuators
4 × Champion GT
Actuator stroke
100 mm (4 in)
Actuator speed
250 mm/s
Force per actuator
80 kg (176 lb)
Weight capacity
320 kg (705 lb)
Controller

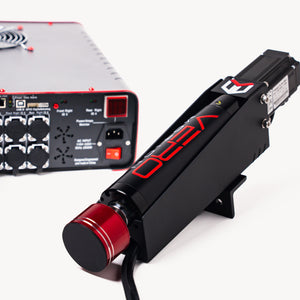

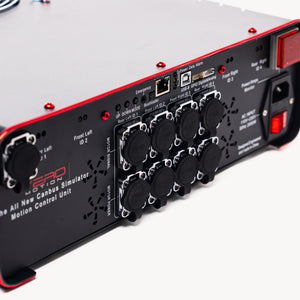

1 motion controller with E-stop button
Cockpit mounting
Brackets for aluminum extrusion cockpits (included)
Floor contact
4 floor contact cups
Software
SimHub (PC)
Upgrade path
Legend Add-On for surge, sway and traction loss
