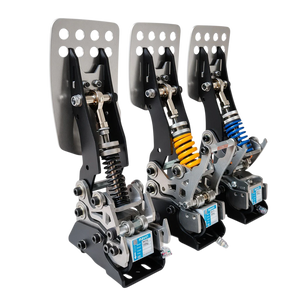

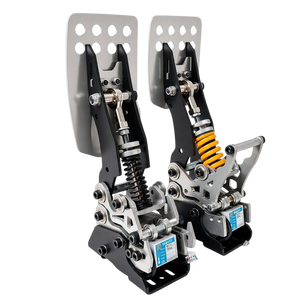

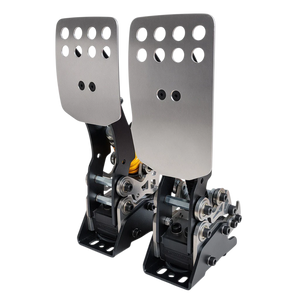

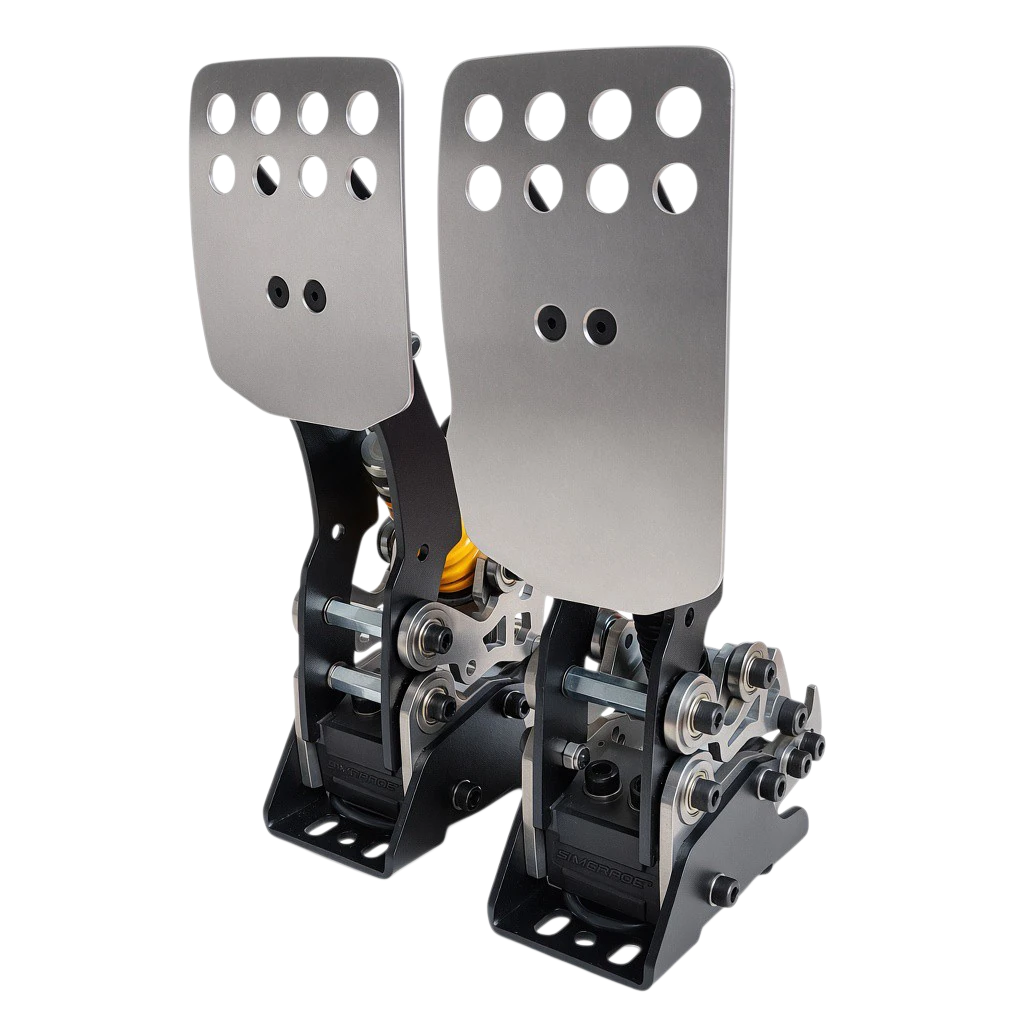

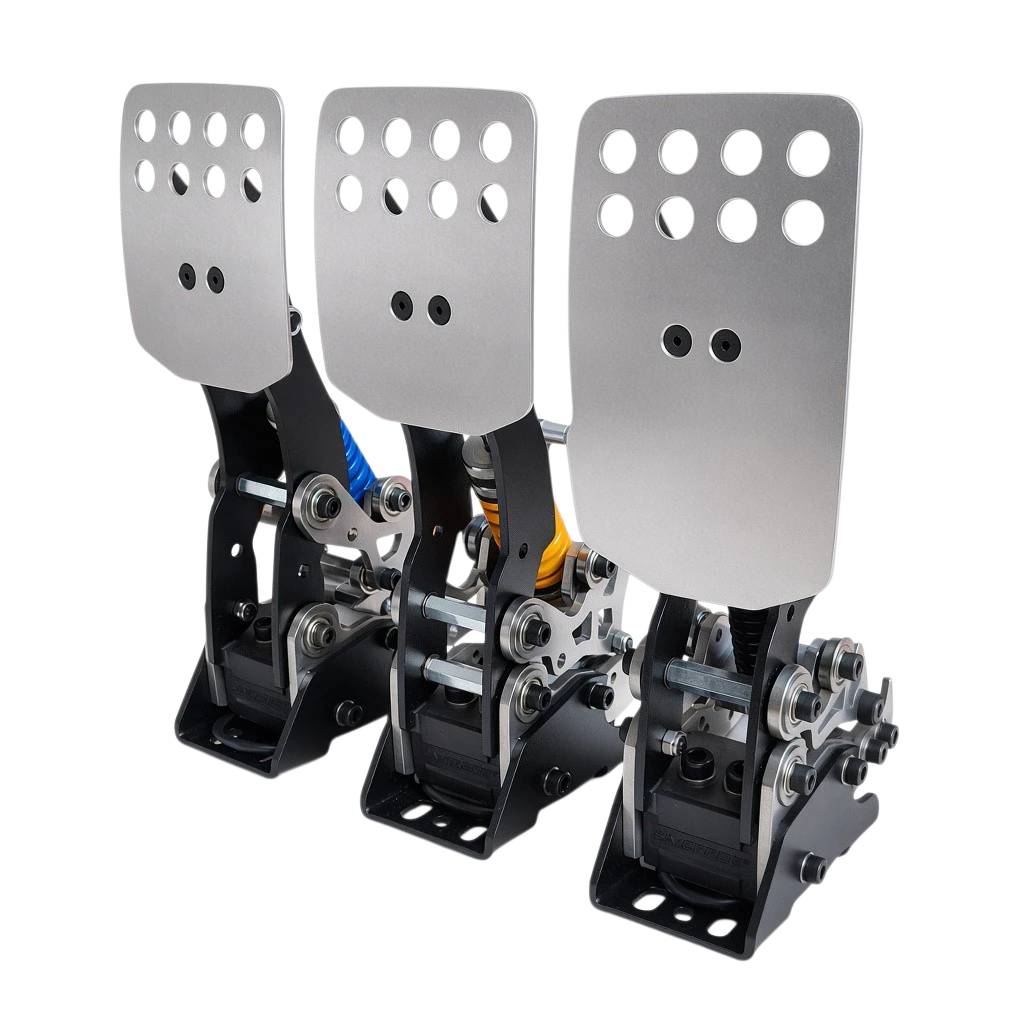

About the SIMGRADE VX-PRO Load Cell Pedals
Built in Finland. Stocked in Florida. The SIMGRADE VX-PRO is the load cell pedal set reviewers keep calling the best value in sim racing. Every pedal reads force through a load cell, the frame is laser-cut stainless steel on sealed stainless bearings, and the brake's adjustable Dual Stage lets you set exactly where it firms up and how hard it bites.
Simpatico Sim Shop is SIMGRADE's official US importer. Your set ships free from Jacksonville, FL, with no customs, duty or brokerage bill at your door, and warranty support handled here in the US by people who race on these pedals.
- Load cell on every pedal: 200 kg cells on brake and clutch, up to 90 kg of braking force
- Adjustable Dual Stage brake, plus 4 brake, 3 throttle and 2 clutch stiffness settings
- Sealed stainless ball bearings at every pivot: no elastomers, no lubrication, zero play
- 8.5° angle adjustment and height-adjustable pedal faces
- Windows calibration tool with dead zones, custom curves and saved profiles
- Mounts with 4 × M6 bolts per pedal on an 80 × 24 mm pattern
Choose the Throttle & Brake set or the full Throttle, Brake & Clutch set. The 3-pedal set costs $39 less than adding the clutch later.
Highlights
-
Load cell on every pedal
200 kg load cells on brake and clutch read how hard you press, not how far, so your braking stays consistent lap after lap. Up to 90 kg of braking force.
-
Dual Stage brake
Set where the brake firms up and how hard it bites, independently of spring stiffness. Four stiffness settings take it from road car to prototype.
-

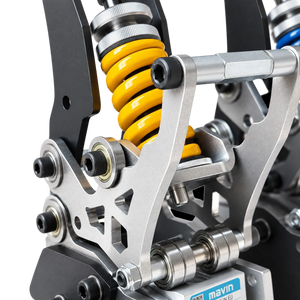

Sealed stainless build
Laser-cut stainless steel on sealed stainless ball bearings at every pivot. No elastomers, nothing to grease, and zero play in any direction.
-
Built in Finland, stocked in Florida
Designed and assembled in-house by SIMGRADE. We stock it in Jacksonville, so there is no customs bill, no overseas wait and US warranty support.
Official US distributor. Stocked in Florida.
Nothing due at your door
Duty and customs clearance are handled before the pedals reach our shelf. No surprise bill from the carrier.
Ships from Florida
Orders placed before 4pm ET ship the next business day.
We handle warranty claims
Full manufacturer warranty. We handle the claim for you.
Text or call
Fit, setup and tuning questions: (904) 606-5888.

Tune the bite, not just the stiffness
The VX-PRO's linkage makes a linear spring feel progressive, and the adjustable Dual Stage lets you choose where the pedal firms up, separately from how stiff it is.
- Load cell200 kg, up to 90 kg braking force
- StiffnessFour mechanical settings
- Dual StageAdjustable bite point
- BearingsSealed stainless, no play
- OptionalBrake Kit V1 for softer springs and new load positions
Tune it your way
Stiffness
Mechanical settings on each pedal: four on the brake, three on the throttle, two on the optional clutch.
Dual Stage
Set where the brake firms up, independently of stiffness.
Preload
Dial in how much force it takes before the pedal starts to move.
Pedal angle
8.5° of adjustment to face the pedals straight at your foot.
Face height
Raise or lower each pedal face to suit your shoe size and seating position.
Clutch profile
On the optional clutch, two sets of profile plates shape it from road car to race car.
Calibration curves
SIMGRADE's Windows tool adds dead zones, custom curves and saved profiles.

Will it fit your rig?
The VX-PRO bolts to a rigid pedal deck. Check these four things, or text us a photo of your rig and we will confirm the fit before you order.
- Bolts4 × M6 per pedal (not M8), with washers
- Mounting pattern80 × 24 mm per pedal
- DeckA rigid deck or the SIMGRADE Pedal Base Plate
- PCA Windows PC with a free USB port (no unpowered hubs)
Known quirks, handled
Dated-looking software
The calibration tool is plain, but it does everything you need. Text us and we will help you dial in a starting profile.
Fiddly rear bolts
Tilt each pedal forward to reach the rear mounting bolts.
Resting foot on the brake
Set a small dead zone at the top of the brake travel in the calibration tool.
USB-C connection
Secure the cable with some strain relief so it cannot be tugged loose.
Specs
- Configurations
- Throttle & Brake (2-pedal) or Throttle, Brake & Clutch (3-pedal)
- Sensors
- Load cell on every pedal
- Brake
- 200 kg load cell, up to 90 kg braking force, adjustable Dual Stage
- Clutch
- 200 kg load cell, two sets of profile plates included
- Stiffness settings
- Brake 4 · Throttle 3 · Clutch 2
- Pedal angle
- 8.5° adjustment
- Pedal faces
- Large, height adjustable
- Bearings
- Sealed stainless steel ball bearings at every pivot
- Frame
- Laser-cut stainless steel, maintenance-free
- Springs
- Compatible with ISO 10243 die springs
- Mounting
- 4 × M6 bolts per pedal, 80 × 24 mm pattern
- Connection
- USB-C controller, 1.8 m (6 ft) USB-A to USB-C cable included
- Software
- Windows calibration tool: dead zones, custom curves, saved profiles
- Platform
- PC
- Box size
- 24 × 35 × 10 cm (9.4 × 13.8 × 3.9 in)
- Origin
- Designed and assembled in Finland
