Actual item photographed — this exact unit ships to you.
CONSPIT MAX 01 Formula Sim Racing Wheel (Used)
Missed it? Get first shot at the next one
One-of-one items go fast. We will email you if this returns — and The Inside Line gets every drop 48 hours early.
contact: (904) 606-5888
Overview
Condition Report — Simpatico Certified
| Condition | Used – Great |
| Tested | Inspected, serviced & bench-tested in-house |
| Included | Complete — wheel, 50–70 mm quick release adapter, detachable coiled USB cable, tool kit, bolts and original box |
| Notes | Light handling marks consistent with normal use. Nothing that affects function. PC only — the display, buttons and encoders run over USB and are not supported on console. |
| Guarantee | 45-day money-back functional guarantee |
This is the same MAX 01 we sell new at $729 — one unit, driven, then brought back across our bench before it went up here. It is CONSPIT's flagship formula rim: 300 x 170 x 87 mm, a CNC carbon fiber front plate over a black-anodized aluminum unibody, and roughly 1,400 g without a quick release. Heavier than a stripped-down GT rim, and deliberately so — there is a lot of hardware on this face.

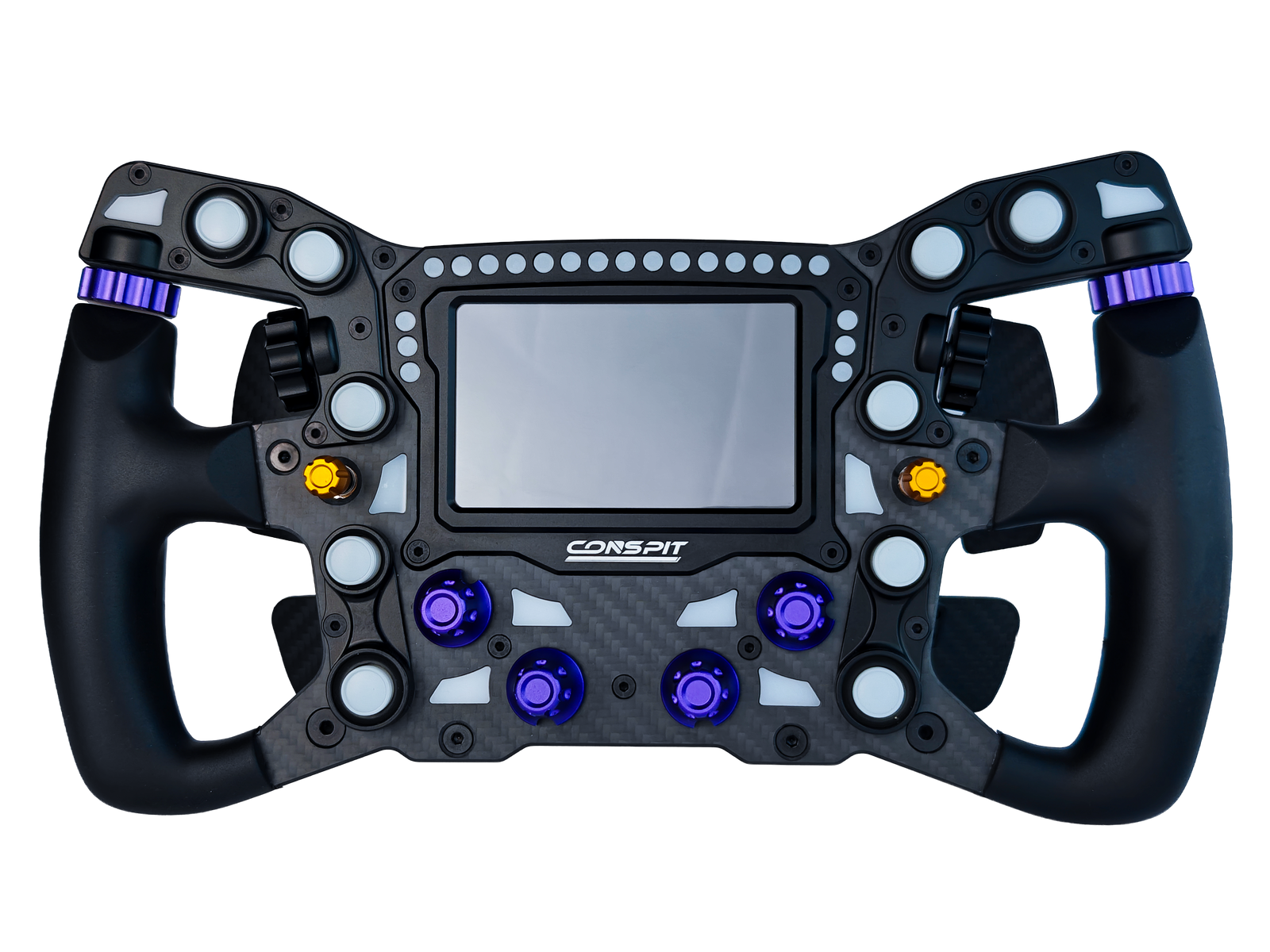

The headline is the 4.0-inch IPS display. At 800 x 480 it is the largest, sharpest screen CONSPIT puts on a wheel, brightness-adjustable, and it runs SimHub natively with CONSPIT's own pre-built dash profiles. Around it sit 29 indicator LEDs — 15 RPM lights in a round arc, six telemetry LEDs split three per side, and eight label LEDs that tell you what your rotaries are currently doing.
Twelve buttons (ten RGB-backlit on the face, two on the rear), four thumb encoders with large aluminum caps, four 12-position rotary switches, and two 7-way funky switches give you a full pit-wall's worth of control without a button box. The rotaries are the clever part: each one runs in encoder, switch, remap or macro mode, so a single knob can step through fuel maps in one mode and fire a saved macro in another.

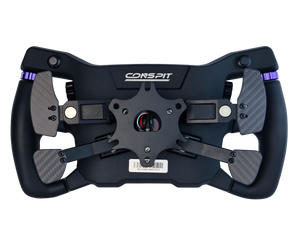

Shifts come off silent magnetic Hall-sensor paddles with a damping system and width-adjustable carbon grip surfaces — the quiet, deliberate click you get from wheels costing considerably more. Behind them, two modular Hall-sensored analog paddles can be set up as a dual clutch with an adjustable bite point, or split into throttle and brake. The 50–70 mm adapter is included with this unit, so Simucube, Fanatec, Simagic, Asetek, VRS and MOZA bases all take it. Wheel configuration runs through CONSPIT Link; RGB and telemetry run through SimHub. PC only.
One available. The photos show the exact unit that ships. When it sells, the listing is done.
Inspected, serviced and bench-tested in-house before it earned the badge. Every button, encoder, rotary, paddle and the display was exercised on our own rig.
A money-back functional guarantee. If it does not work the way we described it, send it back. No restocking games.

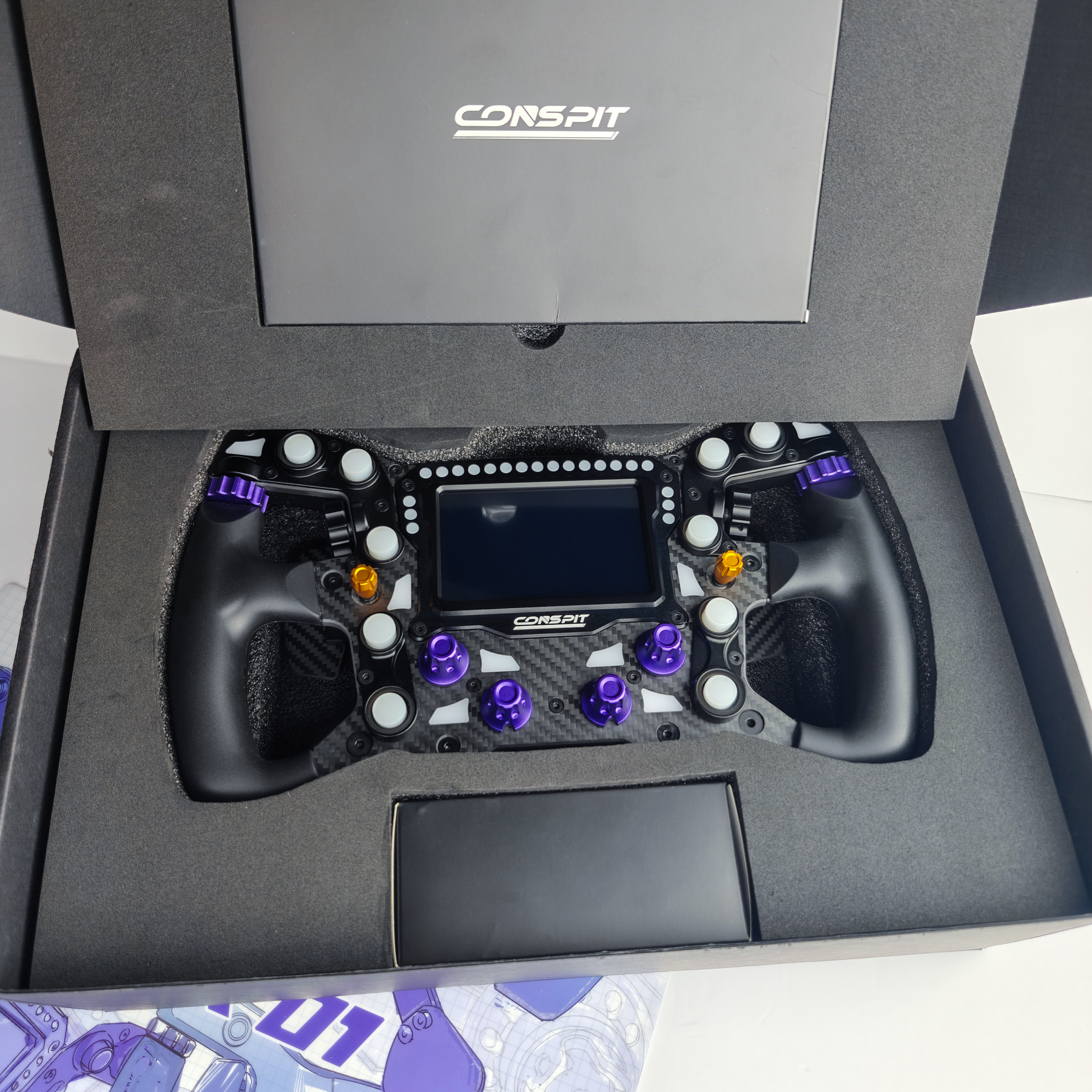

The 50-70 mm adapter, coiled cable, tool kit and original box are all here, so this is a bolt-it-on-and-drive unit rather than a rim you have to finish buying.
A 4.0-inch 800x480 IPS display with brightness control, running SimHub natively with CONSPIT's own pre-built dash profiles.
Encoder, switch, remap and macro modes mean one knob can step fuel maps in one mode and fire a saved macro in another, with 8 label LEDs showing you which.
Damped Hall-sensor paddles with width-adjustable carbon surfaces, plus two modular analog paddles for dual clutch or throttle/brake.
The included 50-70 mm adapter covers Simucube, Fanatec, Simagic, Asetek, VRS and MOZA hubs.
Specifications
Buying used from Simpatico
What does Used - Great mean here?
What does Simpatico Certified mean?
What is the guarantee?
Is this the exact unit I will receive?
Do I need a quick release?
Will this work on Xbox or PlayStation?
What does shipping cost?
What's included
- CONSPIT MAX 01 steering wheel (this exact unit)
- 50-70 mm quick release adapter
- Detachable coiled USB cable
- Tool kit, mounting bolts and manual
- Original box and packaging
- Simpatico test certificate
Simpatico Certified
Inspected, serviced, and bench-tested before it earns the badge
Every certified item goes across our own bench before it goes on the site — cleaned, serviced, function-checked, and run on our own rigs. That is why used gear from Simpatico carries a 45-day functional guarantee instead of a shrug. If it does not pass, it does not get the badge.
