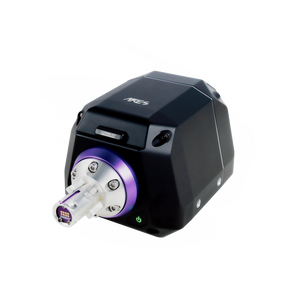

Conspit ARES 12 CDR direct drive sim racing wheelbase
Wheel Bases

Conspit ARES 12

$539.00
Tax calculated at checkout
Quick ReleaseCDR
Availability Low stock — 3 left
WarrantyFull Manufacturer Warranty
Returns30 days
CDR: in stock, ships within 1-2 business days.
CDP: backordered, expected to ship within 2-4 weeks.
Ships free.
Tested and supported by our team in the US
contact: (904) 606-5888
Amazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa
Conspit ARES 12
Free shipping over $150 · ships in 1 business day
$539.00
12Nm Direct-Drive Torque

A skew-pole direct-drive motor delivers 12 Nm of holding torque with a slew rate up to 9.5 Nm/ms for razor-sharp feedback.

23-Bit Optical Encoder

A 23-bit optical encoder reads wheel position with sub-0.01-degree precision for smoother, more accurate steering feel than magnetic designs.

Your Choice of Quick Release

Pick CDR for Conspit's newer auto-locking system, or CDP for the three-bolt 50 mm PCD pogo-pin block. Either way you swap wheels in seconds without tools.

Under 2.3% Cogging Torque

A dual skewed-pole stator and rotor design keeps cogging torque under 2.3 percent for exceptionally smooth, vibration-free rotation.

Specifications

Holding Torque12 Nm
Torque Slew RateUp to 9.5 Nm/ms
Cogging TorqueLess than 2.3%
Encoder23-bit high-resolution optical encoder
MotorSkew-pole direct-drive, dual skewed-pole stator/rotor
Quick ReleaseCONSPIT CDR or CDP, chosen above
MountingM6 x 4 (bottom), M8 x 4 (sides)
Net Weight5.6 kg
Dimensions134 x 150 x 243 mm (CDR), 134 x 150 x 260 mm (CDP)
ConnectionUSB direct (USB 3.0 cable)
PlatformWindows PC
SoftwareConspit Link 2.0
E-StopCES emergency stop compatible (optional)

FAQ

Which quick release should I choose?
CDR is Conspit's newer auto-locking system. CDP is the three-bolt 50 mm PCD pogo-pin block. Motor, encoder and torque are identical, so pick the one that matches the wheels you already own. Ask us if you are not sure.
How much torque does it make?
12 Nm holding torque from a skew-pole direct-drive motor with a 23-bit optical encoder.
Why an optical encoder?
Conspit's optical encoder gives higher accuracy, smoother feedback, and greater long-term reliability than a magnetic encoder of the same resolution.
Is 12 Nm enough?
For almost everyone, yes. Most drivers run their 20 Nm bases well below full output. Twelve newton meters gives you real detail without needing a heavy rig to hold it down.

In the box

  • ARES 12 direct drive wheelbase
  • Quick release block, base side (CDR or CDP, as selected)
  • Power supply
  • USB 3.0 cable
  • Mounting hardware (M6 and M8)
