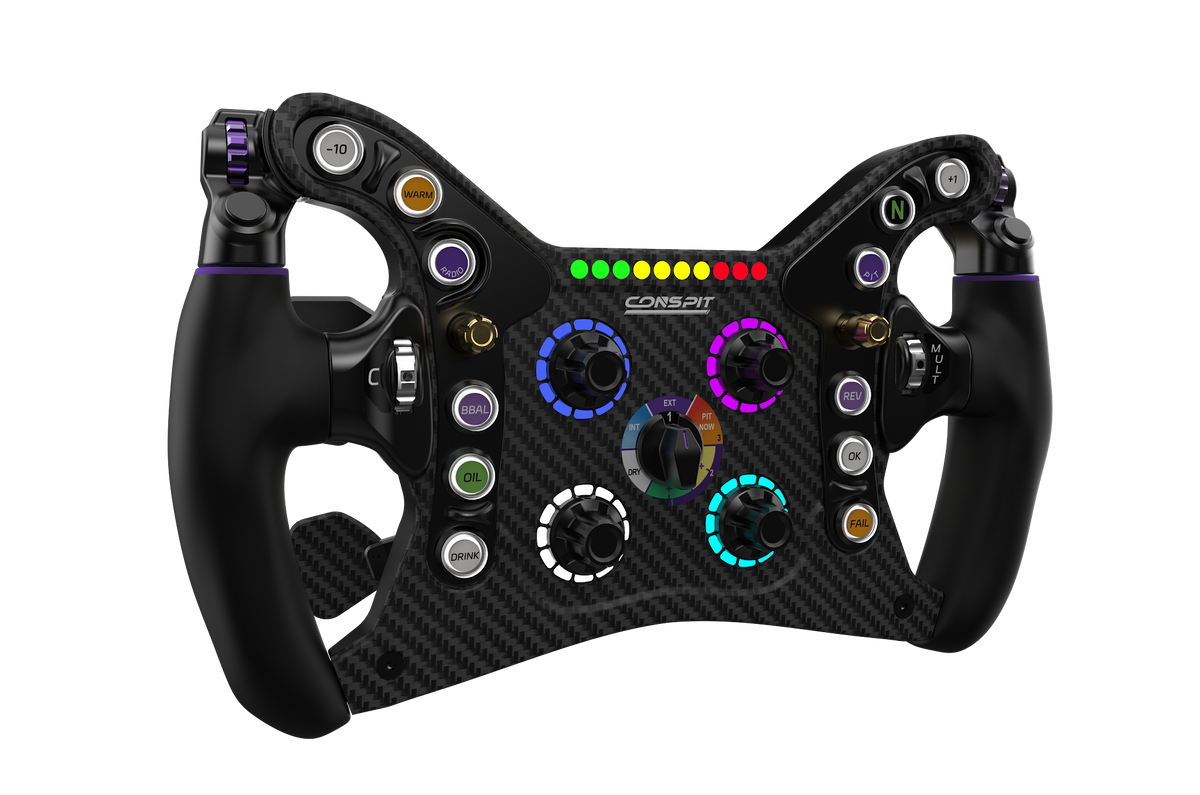

Conspit 280FR formula sim racing wheel, front view with rev lights and rotary rings lit
Wheels

Conspit 280FR Formula Sim Racing Wheel (Pre-Order)

$349.00
Tax calculated at checkout
Availability Pre-order
WarrantyFull Manufacturer Warranty
Returns30 days
Key spec280 mm, 1,050 g
PlatformsPC

Pre-order: expected to ship within 2-4 weeks.

Ships free.

Not released yet — reserve one now and we ship it as soon as our first shipment arrives. Any in-stock items you order ship straight away.

Add a CSD Nano Not added

280FR comboTake 30% off the CSD Nano when you add it with your 280FR.

Tested and supported by our team in the US
contact: (904) 606-5888
Amazon Amazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa
Conspit 280FR Formula Sim Racing Wheel (P...
Pre-order: expected to ship within 2-4 weeks.
$349.00
Sized for quick hands

At 280 mm and 1,050 g, the 280FR keeps rotating mass low for single-seaters and prototypes, with enough rim for competitive GT cars.

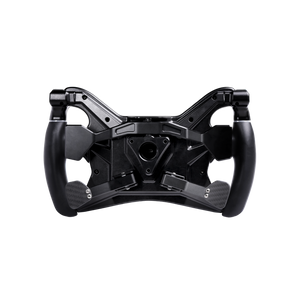

Shift with either hand

The push-pull shifters are linked die-cast aluminum paddles, so pushing one does the same as pulling the other. Either hand can shift up or down, with a crisp magnetic return and Hall sensors that read each shift without contact.

Controls under your thumbs

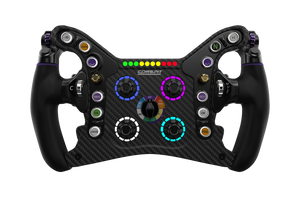

Two 7-way funky switches, four encoders and four lit 12-position rotaries handle in-car adjustments. The six-position Dial Matrix swaps rotary and encoder profiles, so the same knobs can do different jobs.

Dual clutch as standard

Two Hall sensor clutch paddles handle bite-point launches you set up in Conspit Link 2.0.

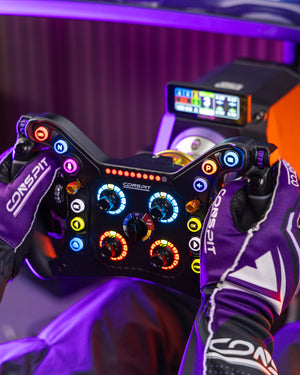

Lit the way you want

Every button and rotary ring is RGB lit, with a rev light strip across the top, and SimHub drives all of it.

Specifications

TypeFormula-style wheel for Formula, prototype and GT
Diameter280 mm
Weight1,050 g, without quick release or adapter
Front plate3K prepreg carbon fiber, compression molded
BodyDie-cast aluminum alloy
GripsSilicone over a CNC-machined aluminum core
Buttons12 RGB backlit, plus 2 function buttons
Encoders4 x
Rotary switches4 x 12-position, plus 6-position Dial Matrix
Funky switches2 x 7-way
Shift paddlesLinked push-pull shifters, die-cast aluminum, magnetic, Hall sensors
ClutchDual Hall sensor paddles, dual clutch standard
LightingRGB buttons, rev lights and rotary rings, SimHub compatible
DisplayNone, pairs with the Conspit CSD Nano
ConnectionUSB direct or CONSPIT CAN, rear USB-C port
PlatformPC (Windows)
SoftwareConspit Link 2.0, SimHub

FAQ

When will my pre-order ship?
Pre-orders are expected to ship within 2-4 weeks, and shipping is free.
How do the push-pull shifters work?
The two shift paddles are linked, so pushing one does the same as pulling the other. That lets either hand shift up or down. They are die-cast aluminum with a magnetic return, and Hall sensors read each shift.
Which quick release do I need?
On a Conspit ARES base, add a CDR or CDP quick release to match your base, and the USB connection runs through it. On other direct drive bases, the included Quick-Con adapter bolts to a 70 mm PCD quick release and the coiled cable carries the data. Tell us your base and we will confirm before you order.
Does it have a screen?

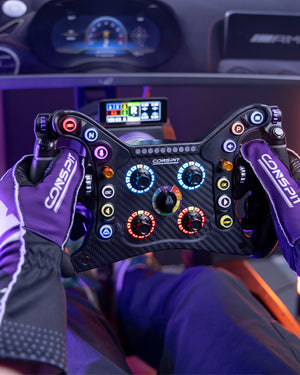

No. The open top keeps your view of the in-game dash clear. If you want a display, the Conspit CSD Nano mounts on an ARES base or anywhere on your rig and can show your Dial Matrix position and encoder settings.
Is there a deal on the CSD Nano?
Yes. Add a CSD Nano with your 280FR and 30% comes off the Nano automatically in your cart.
Does it work on Xbox or PlayStation?
No. Conspit lists the 280FR for Windows PC only.

In the box

  • 280FR formula wheel
  • Quick-Con adapter (fitted)
  • Coiled data cable
  • Hex keys and mounting screws
