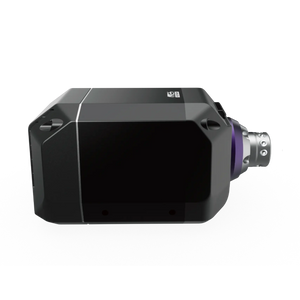

Conspit ARES 20 Platinum CDR direct drive sim racing wheelbase
Wheel Bases

Conspit ARES 20 Platinum

$749.00
Tax calculated at checkout
Quick ReleaseCDR
Availability Backordered
WarrantyFull Manufacturer Warranty
Returns30 days

Backordered: expected to ship within 2-4 weeks.

Ships free.

Order now and yours is reserved from our next delivery — often sooner than the estimate above. We email tracking the moment it ships. Any in-stock items you order ship straight away.

Tested and supported by our team in the US
contact: (904) 606-5888
Amazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa

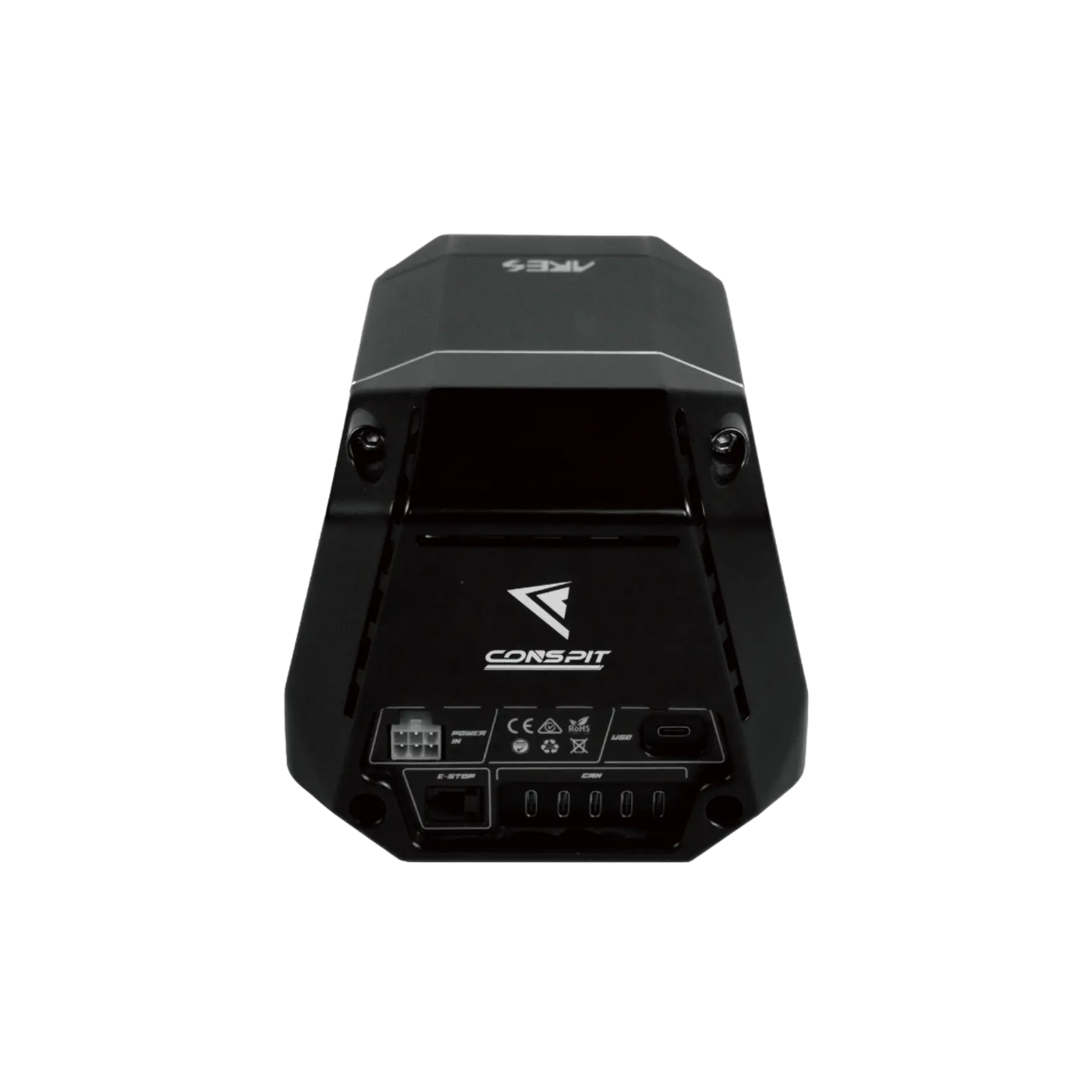

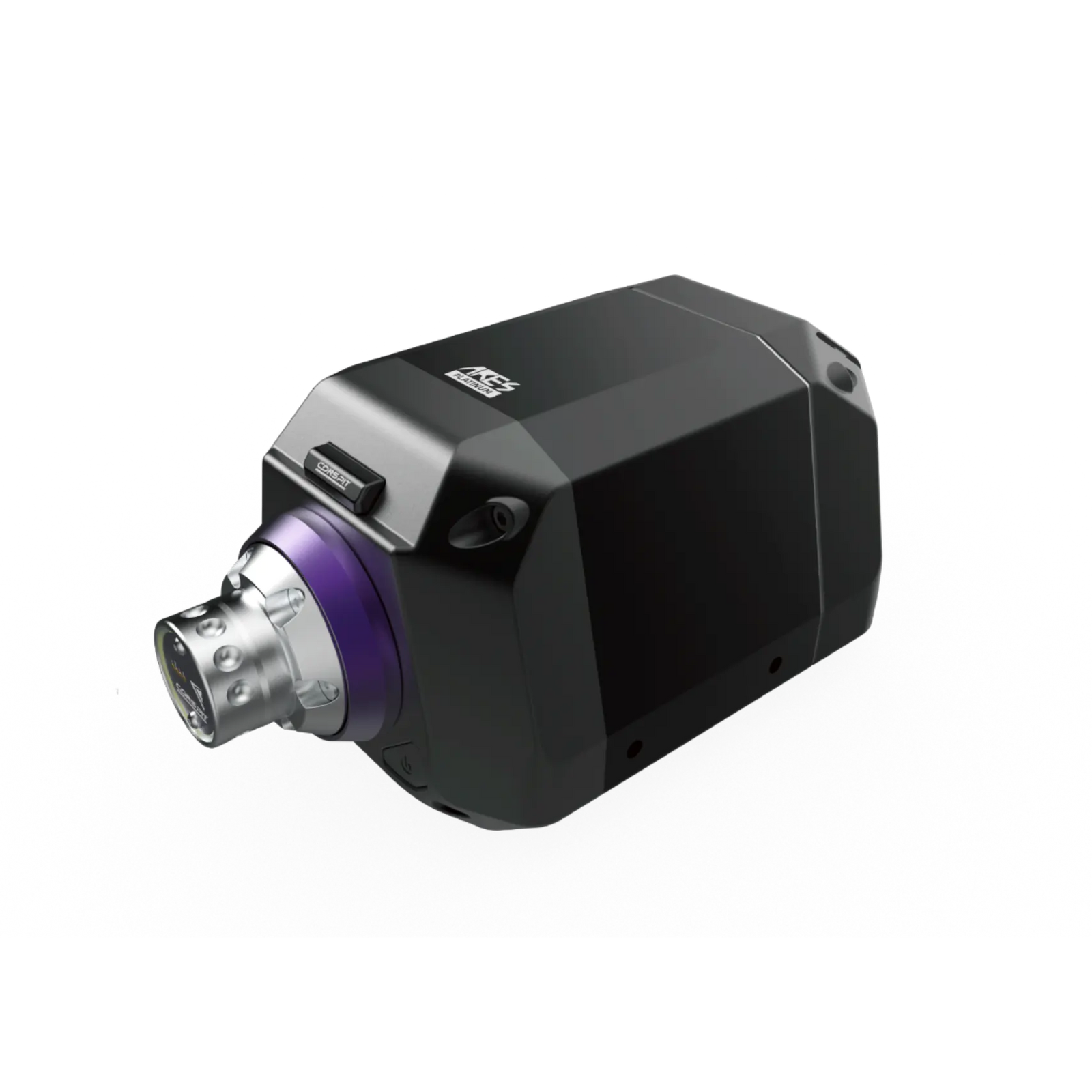

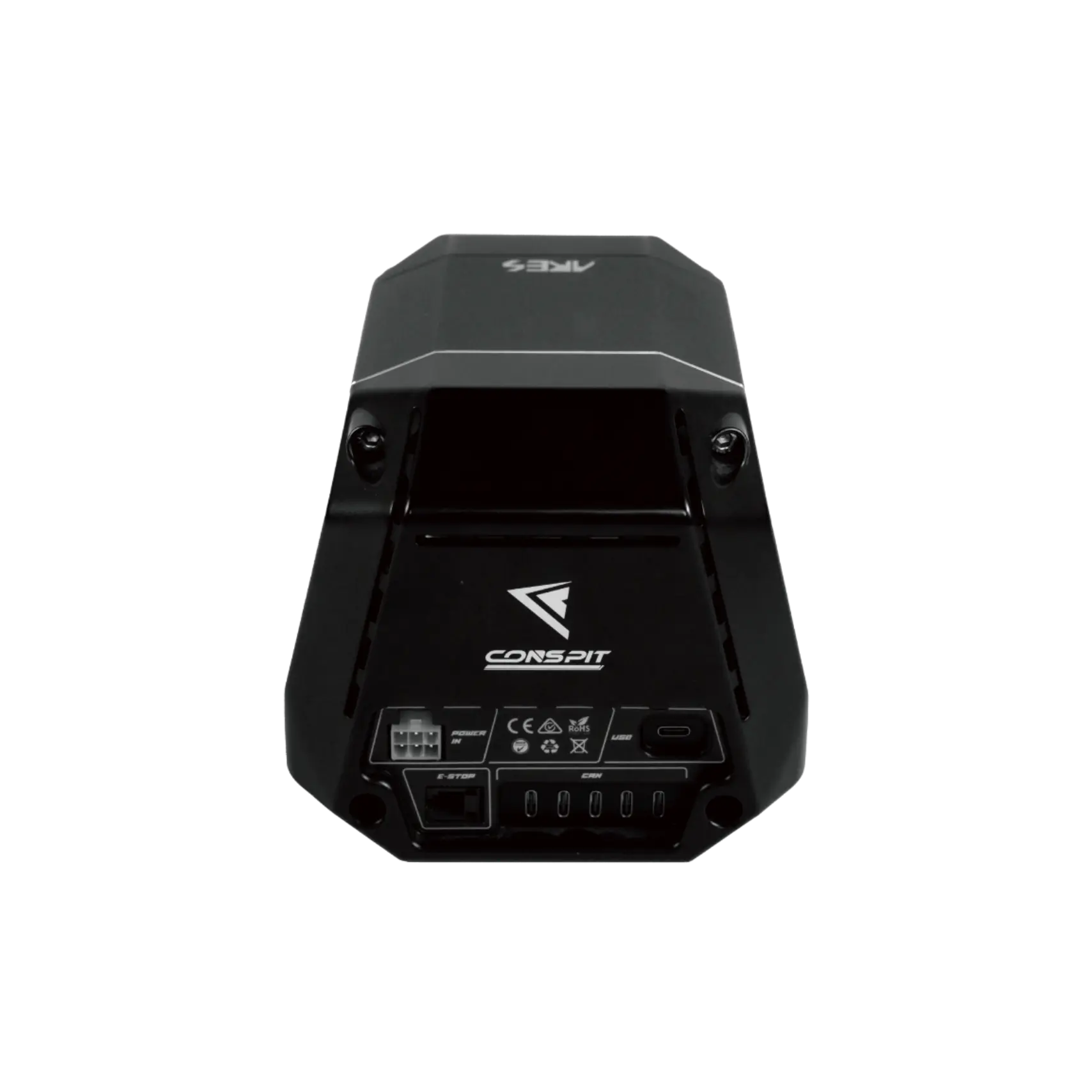

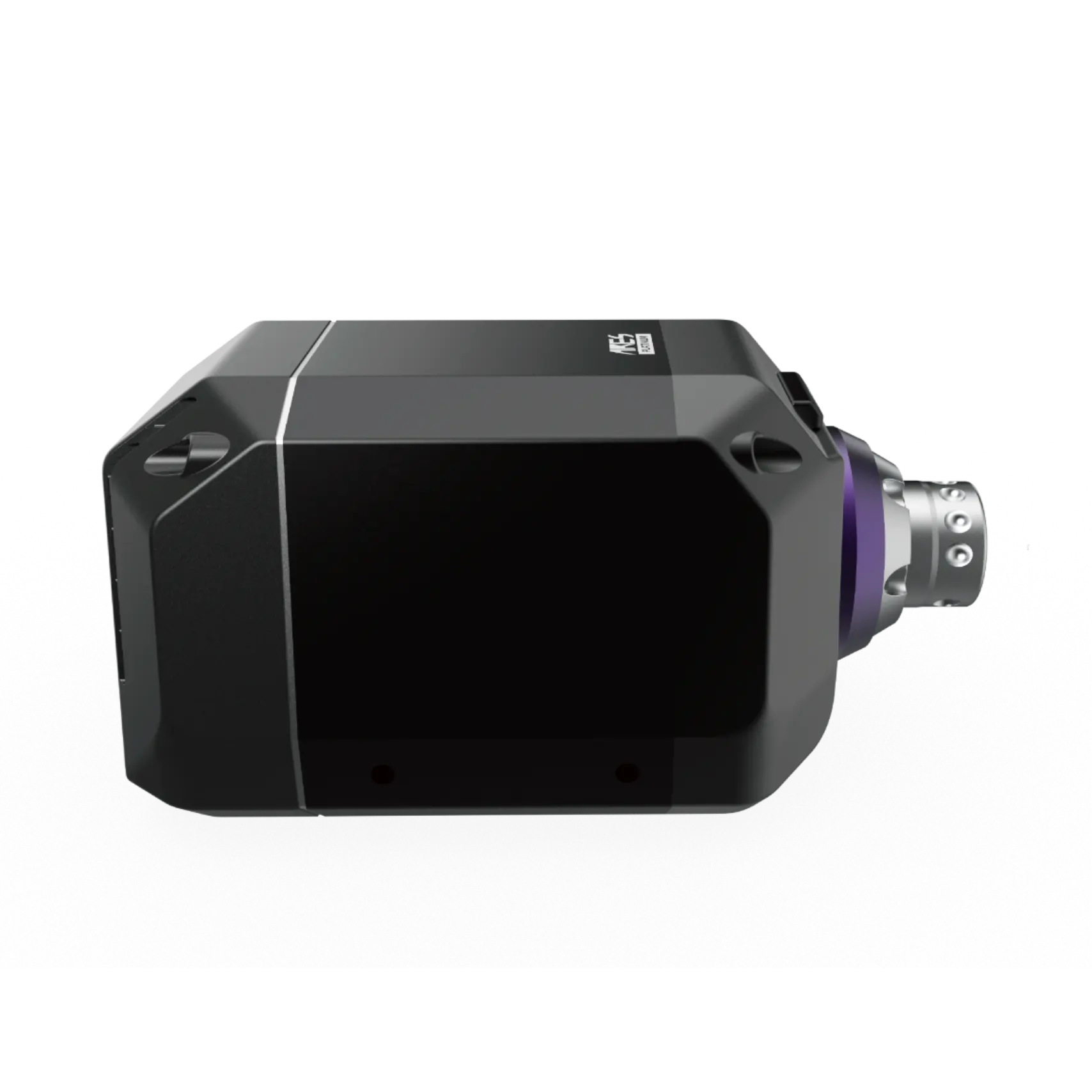

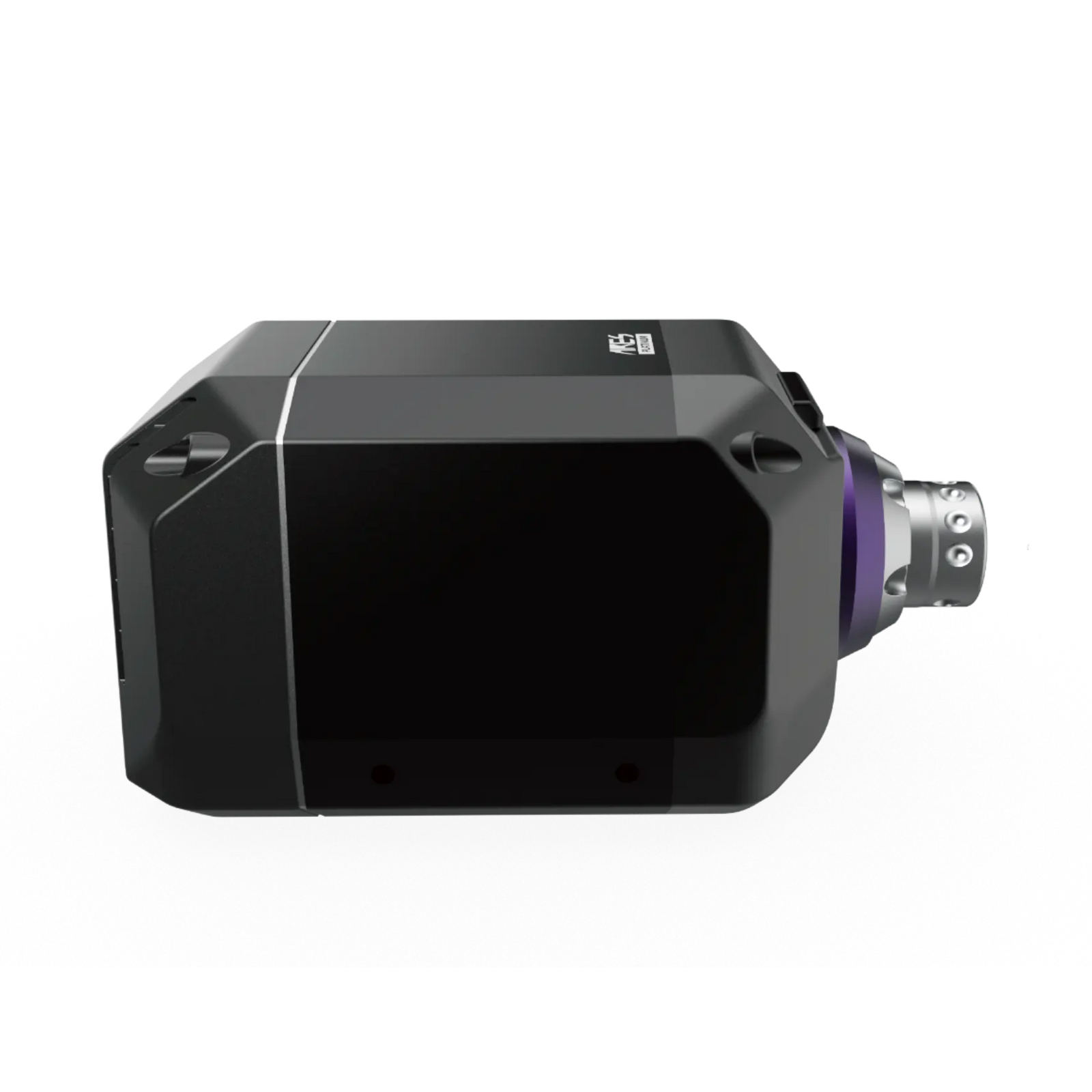

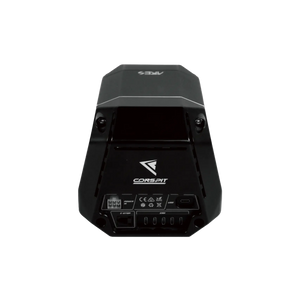

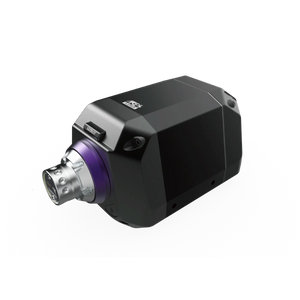

Conspit ARES 20 Platinum
Backordered: expected to ship within 2-4 weeks.
$749.00
20Nm Direct-Drive Torque

The Platinum tier delivers 20 Nm of holding torque from a skew-pole direct-drive motor built for serious force feedback.

23-Bit Optical Encoder

A 23-bit optical encoder tracks wheel position with sub-0.01-degree precision, outperforming magnetic encoders of the same resolution.

Your Choice of Quick Release

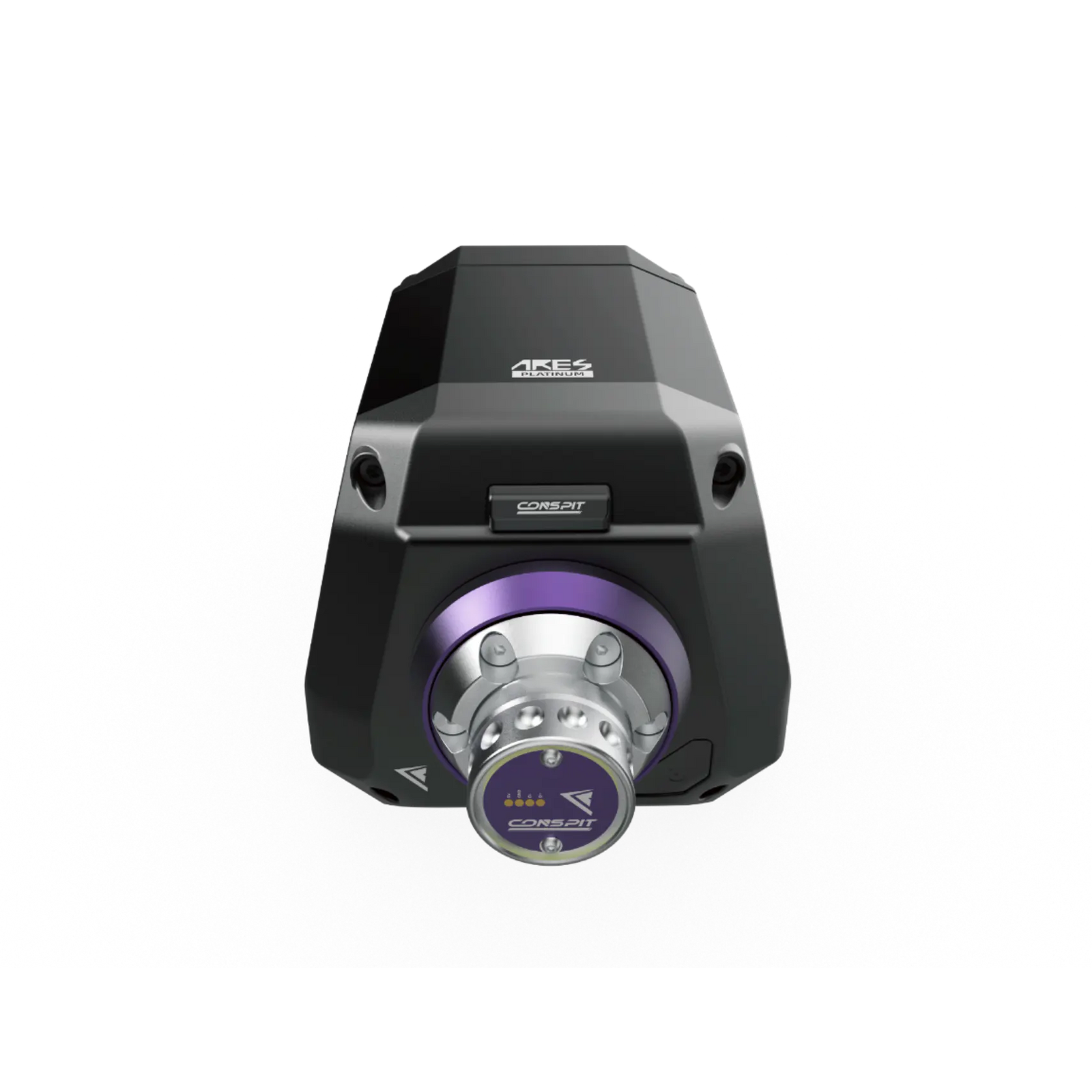

Pick CDR for Conspit's newer auto-locking system, or CDP for the three-bolt 50 mm PCD pogo-pin block. Either way you swap wheels in seconds without tools.

Real Torque Validation Testing

Every Ares motor is validated with a dynamic torque sensor at the wheel to confirm real, driver-felt torque rather than theoretical specs.

Specifications

Holding Torque20 Nm
Torque Slew RateUp to 9.5 Nm/ms
Cogging TorqueLess than 2.3%
Encoder23-bit high-resolution optical encoder
MotorSkew-pole direct-drive, dual skewed-pole stator/rotor
Quick ReleaseCONSPIT CDR or CDP, chosen above
MountingM6 x 4 (bottom), M8 x 4 (sides)
Net Weight7.9 kg
Dimensions134 x 150 x 270 mm (CDR), 134 x 150 x 287 mm (CDP)
ConnectionUSB direct (USB 3.0 cable)
PlatformWindows PC
SoftwareConspit Link 2.0
E-StopCES emergency stop compatible (optional)

FAQ

Which quick release should I choose?
CDR is Conspit's newer auto-locking system. CDP is the three-bolt 50 mm PCD pogo-pin block. Motor, encoder and torque are identical, so pick the one that matches the wheels you already own. Ask us if you are not sure.
How much torque?
20 Nm holding torque, driven by a skew-pole direct-drive motor and a 23-bit optical encoder.
How is it different from the ARES 12?
The Platinum delivers 20 Nm instead of 12 Nm with the same optical encoder and control system, in a larger 7.9 kg body.
Can I use an emergency stop?
Yes, the optional CES external e-stop quickly deactivates the motor, useful for coaching, sim centers, or supervised play.

In the box

  • ARES 20 Platinum direct drive wheelbase
  • Quick release block, base side (CDR or CDP, as selected)
  • Power supply
  • USB 3.0 cable
  • Mounting hardware (M6 and M8)
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
B.

After trying my hands at Moza’s budget and kid-range wheel bases I kept wanting a little more than what the bases could give me. After many hours of research on different brands, I settled on the Ares Platinum. This wheel base gives me all the details I want and need, while also being very composed. On my previous Moza gear I never could quite catch when the wheel slides or the front end load of the car. On the Ares Platinum, almost instantly from day one of testing, I was able to catch the slides, feel when I was under steering or oversteering and adjust quickly. Not to sound hyperbolic, but this is one of the best wheel bases I’ve tried and at it’s given price, it is a no-brainer for me or anyone who is looking for a high-torque base with really good FFB and usability.

Also, I want to thank Simpatico and Jon for the great customer service. I was taken care of and got my order as soon as possible. Incredibly friendly and easy to work with, especially if I had any questions or concerns.
